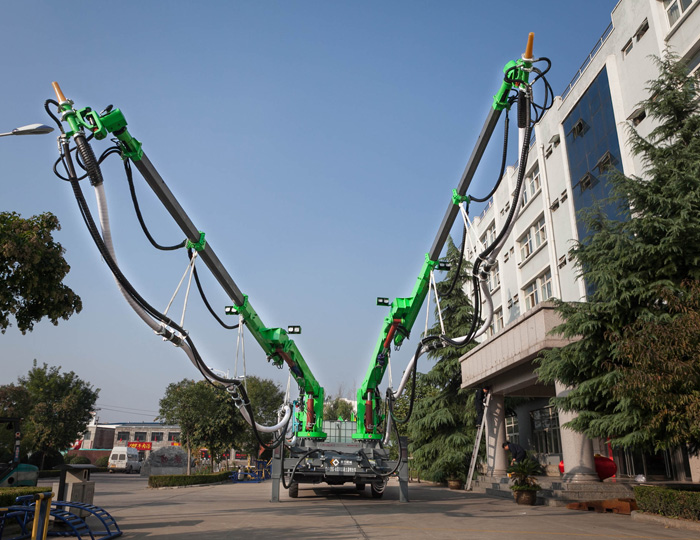

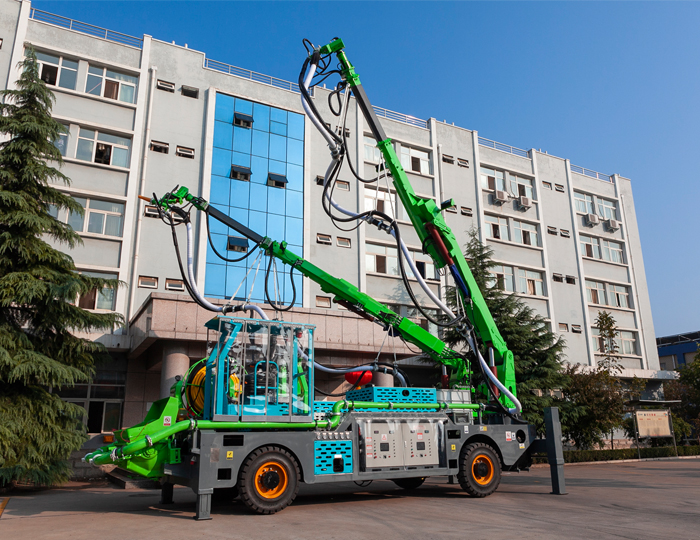

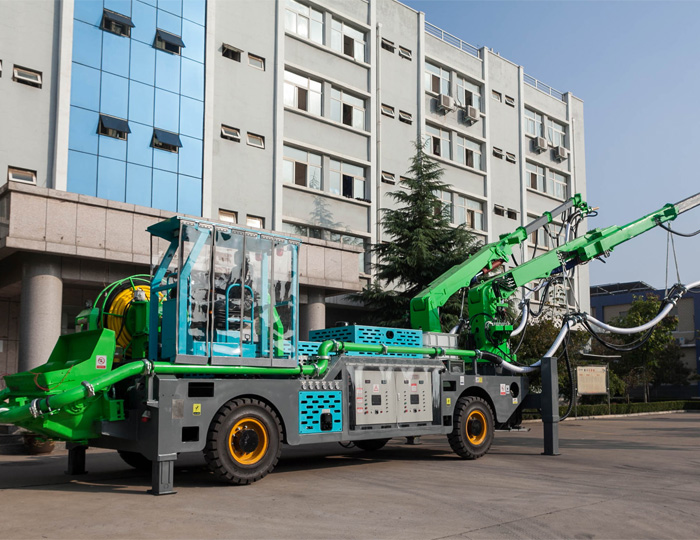

GHP6015G-II Double-arm Truck-mounted Robot Shotcrete Machine


The GHP6015G-Ⅱ double-arm concrete wet spraying trolley is a new product that the company focuses on research and development. It has excellent structure, high firmness stability and high impact strength; Mechanical arm has the advantages of non-blind area and high construction efficiency, which fully reflect our company tenet “make the construction easier”.

Parameters
  • Theoretical spraying displacement: 60(30*2) m3/h

  • Diameter of concrete cylinder: φ180mm

  • Stroke of concrete cylinder: 1000mm

  • Max aggregate diameter: φ15mm


FEATURES

Dual-action system that can operate independently

Dual-action system that can operate independently, without interference, can work with either two arms or one arm.

Hydraulic transmission, easy to control

Hydraulic transmission, easy to control

GPS remote location and fault diagnosis functions

GPS remote location and fault diagnosis functions, shorten the maintenance time.

Adopt full core tire, suitable for more complex road conditions

Adopt full core tire, suitable for more complex road conditions

The maximum theoretical spraying displacement can reach 60m³/h

The maximum theoretical spraying displacement can reach 60m³/h, with twice higher efficiency.

Strong engine power, energy saving and environmental protection

Strong engine power, energy saving and environmental protection

The two-way cab can be rotated to make construction more convenient

The two-way cab can be rotated to make construction more convenient.

Mechanical, electrical and hydraulic integration, stability and dependability

Mechanical, electrical and hydraulic integration, stability and dependability
PARAMETERS
Item Basic performance Unit
Parameter Dimension(L×W×H) 7710×2750×3185mm
Weight 15000kg
Pumping system Theoretical spraying displacement 60(30*2)m3/h
Diameter of concrete cylinder φ180mm
Stroke of concrete cylinder 1000mm
Diameter of delivery pipe φ120~φ90 Variablediametermm
Max aggregate diameter φ15mm
Outlet pressure of concrete 83bar
Hopper capacity 0.3m3
Traveling system Traveling mode Wheel type
Steering Four-wheel steering
Driving mode Four-wheel driving
Minimum turn radius 5.8m
Engine power track 90KW
Wheelbase x wheel 3900×1980mm
Maximum traveling speed 20km/h
Max.Gradeability 36%(20°)
Minimum ground clearance 357mm
Braking distance 5(20km/h)mm
Mechanicalarm Maximum spraying height Depth 7.3--Height 15.8m
Maximum spraying width ±13.5m
Swing angle of arm 270°
Circular rotation angle of nozzle ±180°
Left-right rotationangle of nozzle ±128°
Swing angle of nozzle 8°( continuous)
Accelerator system Model of accelerator pump SN12
Driving mode Hydraulic drive
Displacement of accelerator 0~1000L/h
Max Outlet pressure 20Bar
Volume of accelerator tank 1000L
Hydraulic system Power of main motor 55kW
Oil tank volume 450L
Degree of hydraulic oil pollution NAS1638-9
Displacement of main pump 145ml/r
Washing system Pump model 3Wz-1814HM
Tank volume 500L
Driving mode Hydraulic drive

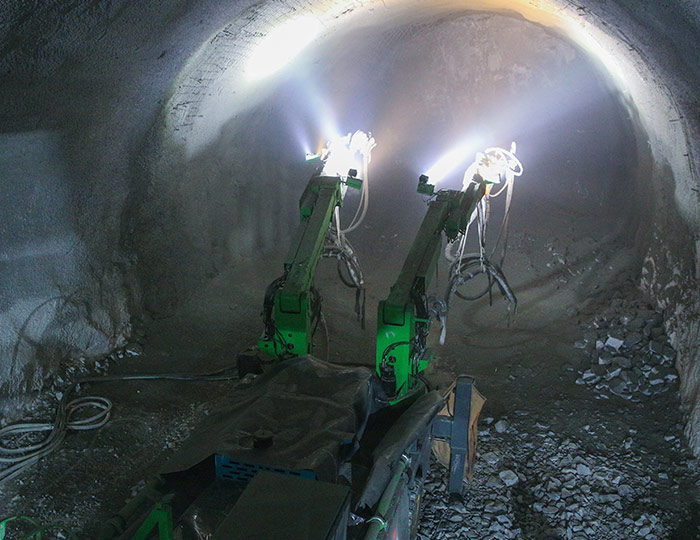

PROJECT CASE
