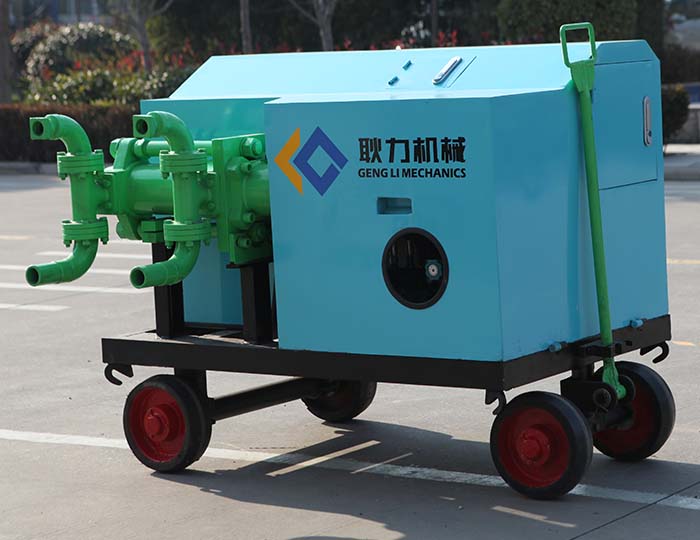

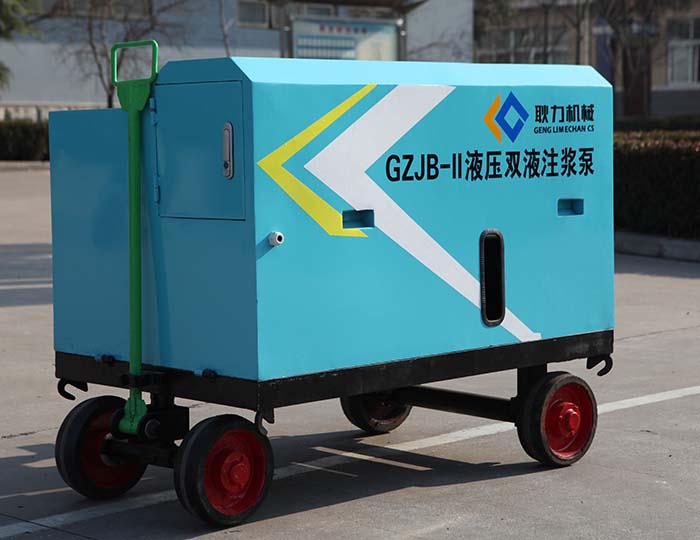

GZJB-II Hydraulic double liquid grouting pump

GZJB-II Hydraulic double liquid grouting pump

GZJB-II Hydraulic double liquid grouting pump can do dual fluid and single fluid grouting, also used as clean water pump, sewage pump and slush pump, has been widely applied for tunnel excavating and maintenance, foundation engineering of road, bridge, dam, mine construction and high-rise building construction and various grouting construction.

Parameters

Working ability：4m³ /h
Weight：450kg
Size：1290*1019*1050mm
Conveying Pressure：7Mpa

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Double liquid multifunctional grouting pump

The pump can be used for single-liquid grouting or dual-liquid grouting, and can be used as a clean water pump, sewage pump, and mud pump

Hydraulic drive, stable and reliable grouting

The pump adopts hydraulic transmission, so it is small in size, light in weight, stable in performance, reliable in work, and simple in operation

The working pressure can be adjusted independently

The pressure can be adjusted arbitrarily within the design range. When the pressure exceeds the set value, the overflow valve opens and the system releases pressure, thus playing a protective role

The layout of the whole machine is beautiful and portable, and the transition is flexible

By optimizing the frame, hood and overall layout, it is small in size, light in weight, and easy to move and transport

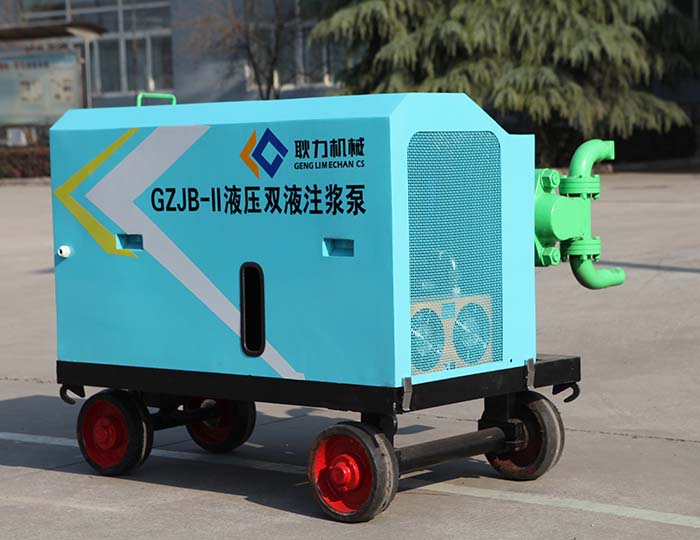

Using a new type of radiator, the heat dissipation effect is stronger

The use of a new type of radiator has a larger heat dissipation area and a stronger heat dissipation effect, making the hydraulic system more stable and reliable

No need to remove the hood for maintenance, saving time and effort

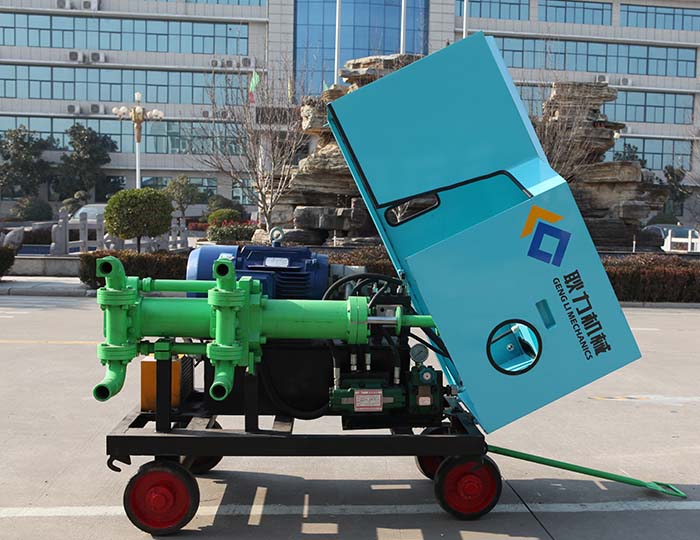

The connection between the hood and the frame is reversible, with the addition of valve lifters, hydraulic oil filling and no need to remove the hood during maintenance, which saves time and effort

The hood is equipped with an observation window and a debugging window, which is convenient and quick

The hood is equipped with an observation window and a debugging window. The debugging window can observe and adjust the system pressure without opening the hood, which is convenient and quick

PARAMETERS

Item	Parameters
Theoretical Output	4m3/h
Maximum System Pressure	7Mpa
Conveying Pressure	7Mpa
Total Weight	450kg
Overall Dimension	129010191050mm
Maximum Conveying Distance	200/60m(Horizontal, Vertical)
Main Motor Power	11kw
Voltage Classes	380V
Inner Diameter of Infusion Tube/	￠32/￠51mm
Inner Diameter of Absorption Tube	￠32/￠51mm
