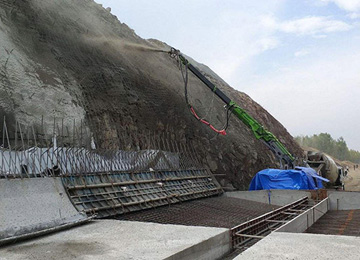

This working site is slope protection, located in Manila, Philippines. According to the actual conditions o...

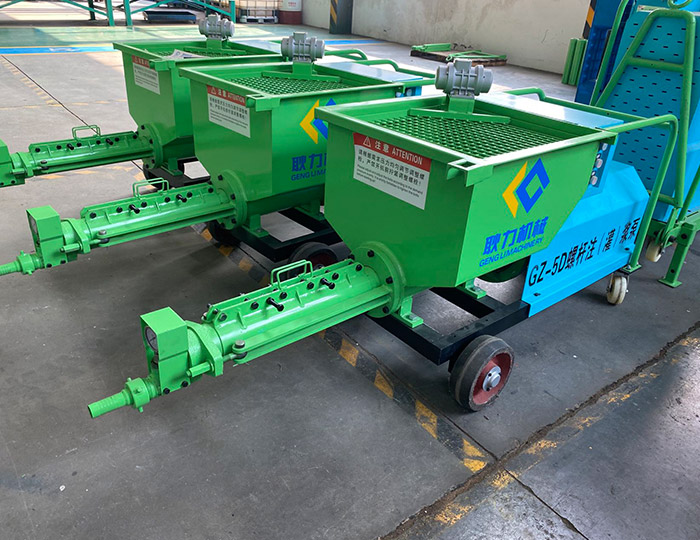

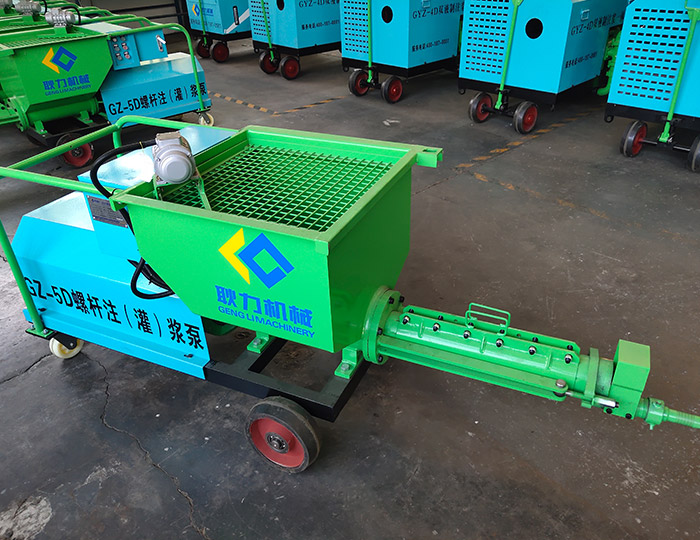

GZ-5D screw grouting pump is a new generation of screw grouting pump upgraded and optimized on the basis of the original GZ-5. Compared with the original GZ-5, it has more reliable performance, less wearing parts, easy maintenance and other advantages.
Production capacity：5m³ /h
Maximum system pressure: 3.5Mpa
Working pressure：0-3.5MPa
Maximum aggregate diameter：3mm
Maximum delivery distance：Horizontal 60m/Vertical 30m
Simple structure, easy maintenance
Simple structure, convenient operation and maintenance, light weight, easy to move.Stable pressure, wide application range
Continuous and uniform liquid discharge, stable pressure, suitable for harsh construction environment.| Model | GZ-5D |
| Production capacity | 5m³/h |
| Maximum system pressure | 3.5Mpa |
| Working pressure | 0-3.5Mpa |
| Maximum aggregate diameter | ≤3mm |
| Maximum delivery distance | Horizontal 60m/Vertical30m |
| Machine weight | 300kg |
| Dimension | 2232×754×984mm |
| Motor power | 7.5KW |
| Voltage level | 380V |

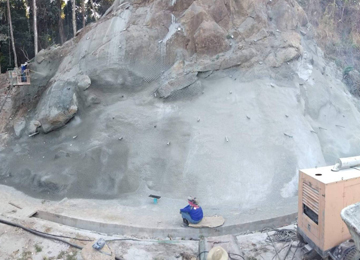

This working site is slope protection, located in Manila, Philippines. According to the actual conditions o...

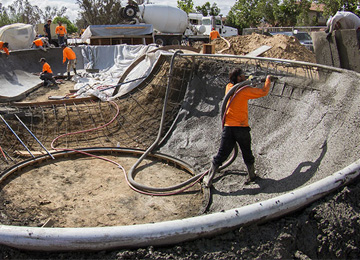

This working site is swimming pool , located in Mexico City, Mexico. According to the actual conditions of ...
This Mine Tunnel project is located in Casablanca, Morocco, with the total investments of USD 890,000. The ...
This working site is High-speed Road Slope, located in Jakarta, Indonesia. According to the actual conditio...

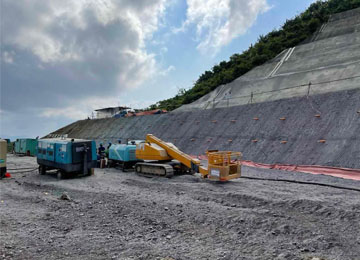

This working site is Foundation Pit, located in Manila, the Philippines. According to the actual conditions...
GLZ-5 Screw Grouting/Spraying Machine
GL-3ZA Tri-plunger high-pressure grouting pump
GZJB-II Hydraulic double liquid grouting pump

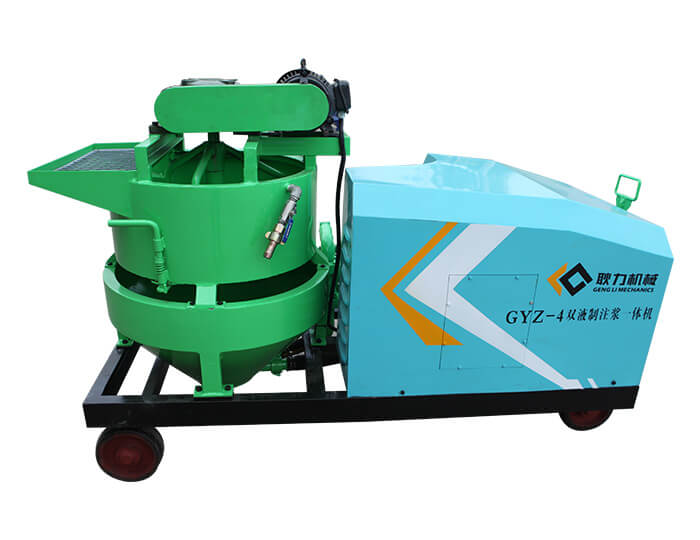

GYZ-4 Dual-fluid pulping and grouting machine
GZ-5 Screw grouting pump
GUB Mortar pump
GSZ-8 Double-cylinder pulping and grouting machine
GWB27/5 Triplex-cylinder and four-speed grouting pump

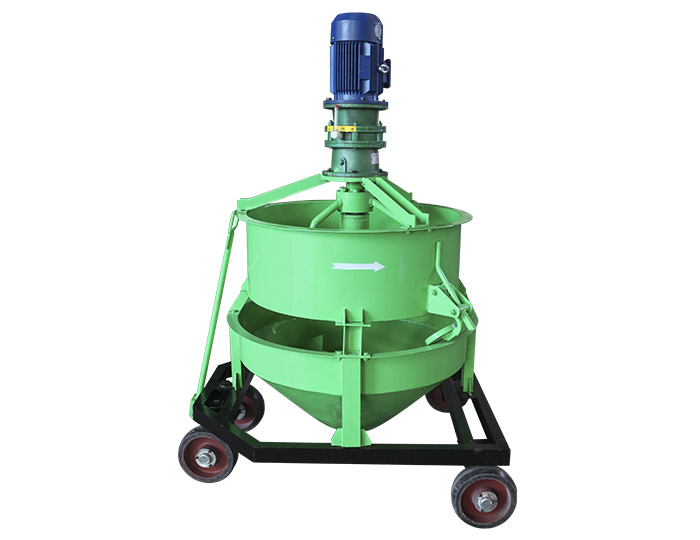

GHJ180 Mortar mixer
