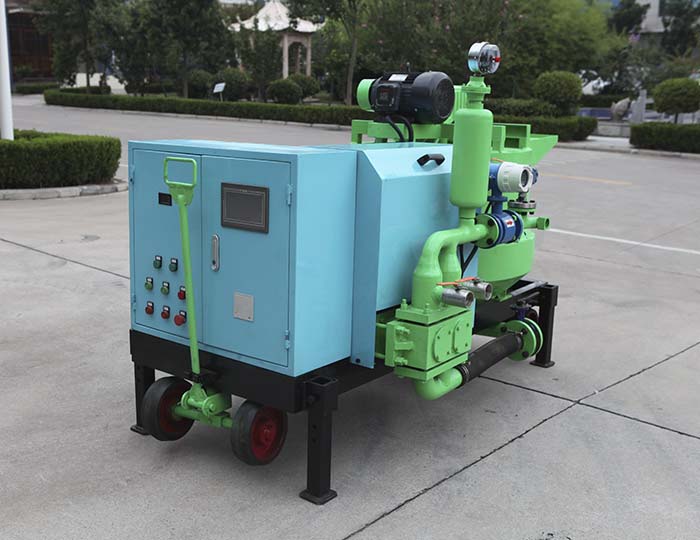

GSZ-8 Double-cylinder pulping and grouting machine

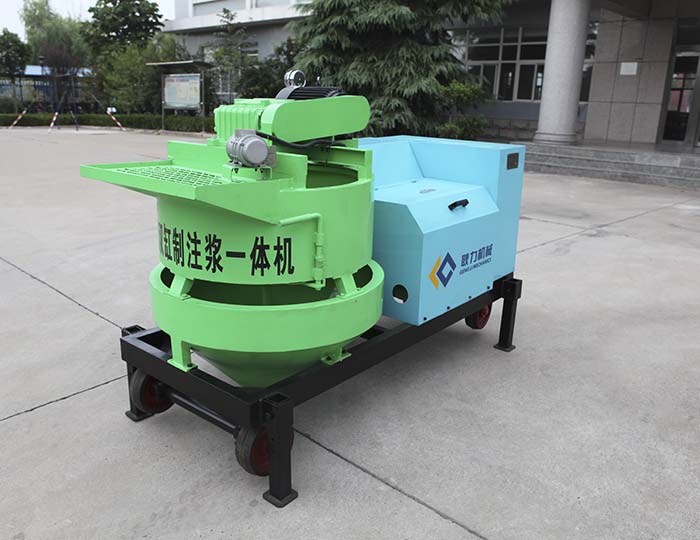

GSZ-8 Double-cylinder pulping and grouting machine, also known as vault-type with mold grouting machine, it consists of pulping part and grouting part, the pulping part adopts vertical double-layer mixing, the upper layer is a mixing barrel and the lower layer is a storage barrel. The grouting part adopts double-piston grouting machine.

Parameters
  • Theoretic output quantity:8m³ /h

  • Maximum delivery distance:Horizontal 200m/Vertical 60m

  • Plunger cylinder:2

  • Motor speed:1480r/min


FEATURES

High pumping pressure

High pumping pressure, suitable for the grouting of low water-cement and high-concentration mortar.

Grouting pipe is easy to disassemble, and convenient to clean and maintain

The grouting pipe is connected with a quick connector, making it easy to disassemble and clean.

Simplify construction technology, improve grouting quality

Upgraded technology to improve grouting quality and make tunnel construction easier.

Integrating mixing, storing and grouting

It integrates mixing, storing and grouting for easier operation
PARAMETERS
Machine parametersModelGSZ-8
Machine   weight1040kg
Dimension2160×1260×1550mm
Production   capacity8m³/h
Mixing   system power4KW
Grouting   system power11KW
Working   pressure0-5Mpa
Maximum   delivery distanceHorizontal 200m/Vertical 60m
Feeding   height1150mm
Mixing   systemMixing speed48r/min
Mixing   hopper volume 180L
Pumping systemPlunger cylinder numbers2
Motor   speed1480r/min
Diameter   of slurry pipe42mm
Electronic   control systemPressure factory setting6Mpa
