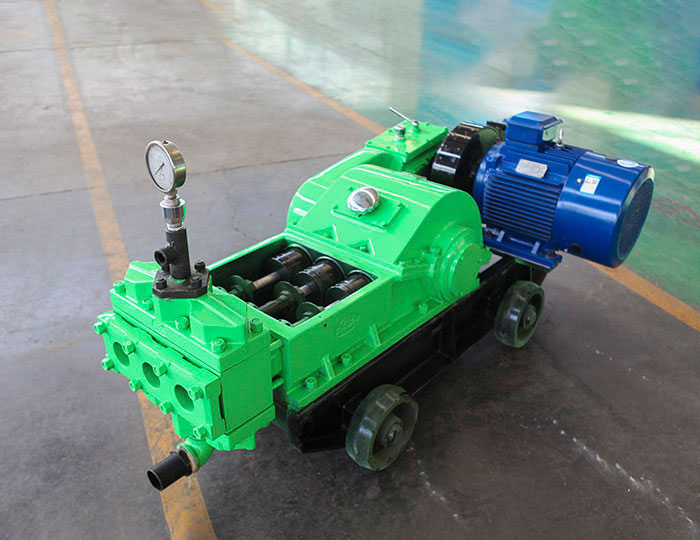

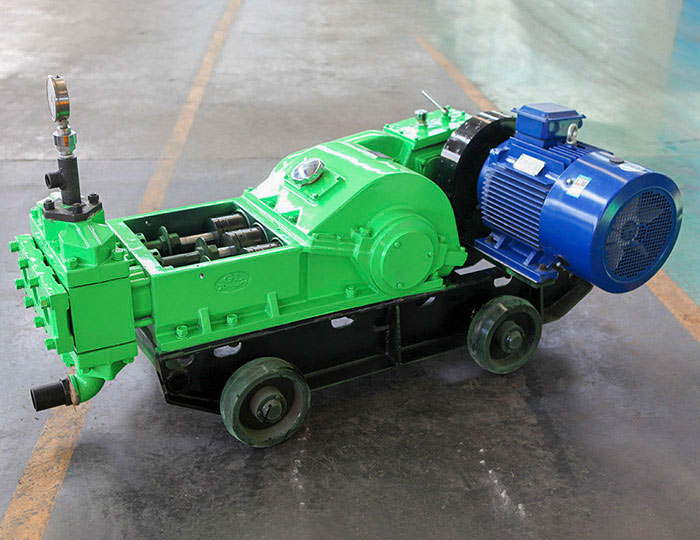

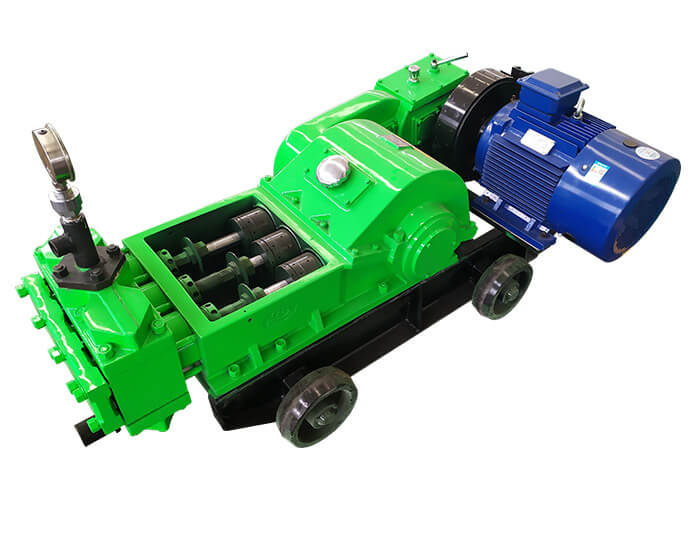

GL-3ZA three-plunger high-pressure grouting pump is mainly used for forced infusion of mortar and cement slurry.
Theoretical displacement：207L/min
Horizontal delivery distance：0-300m
Vertical delivery distance：0-120m
Inlet diameter：64mm
Underground continuous wall
Cement paste grouting of underground continuous wall.Tunnel construction
Cement paste grouting of tunneling.Junction of road and bridge in highway
Cement paste grouting of junction of road and bridge in highway.Anchor
Cement paste grouting of anchoring.| Item | Unit | GL-3ZA | ||
| Rating speed | n | r/min | 91 | 245 |
| Theoretical displacement | Qth | L/min | 76 | 207 |
| Pressure | Cement paste | Mpa | 12 | 4 |
| Mortar | 10 | 3.7 | ||
| Medium ratio | kg | Water:cement:sand=0.5:1.1:1.2 | ||
| Inlet diameter | D | mm | 64 | |
| Outlet diameter | D | mm | 32 | |
| Power | N | KW | 18.5 | |
| Dimension | L×B×H | mm | 1800×945×705 | |
| Machine weight | kg | 930 | ||
| Horizontal delivery distance | L | m | 0-380 | |
| Vertical delivery distance | H | m | 0-120 | |
