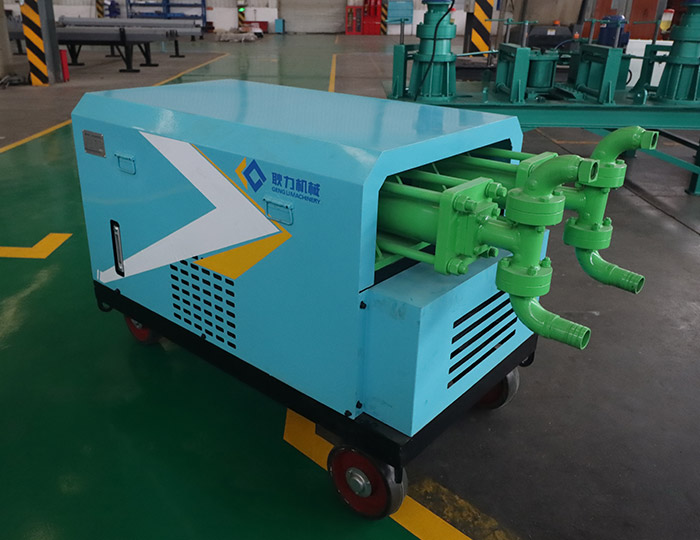

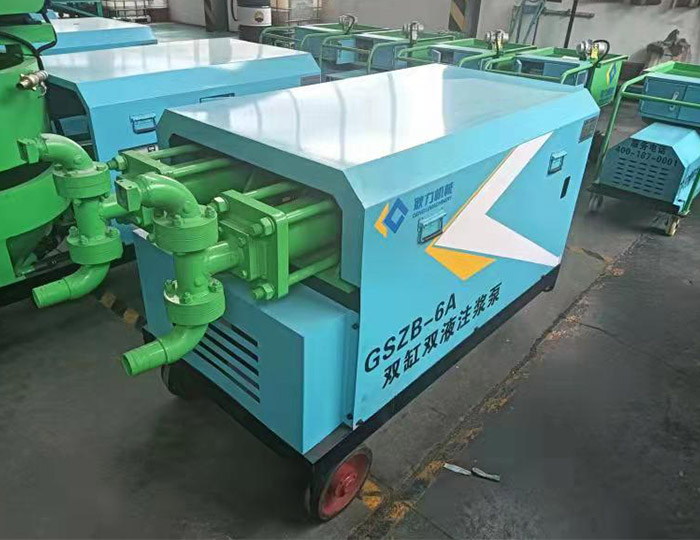

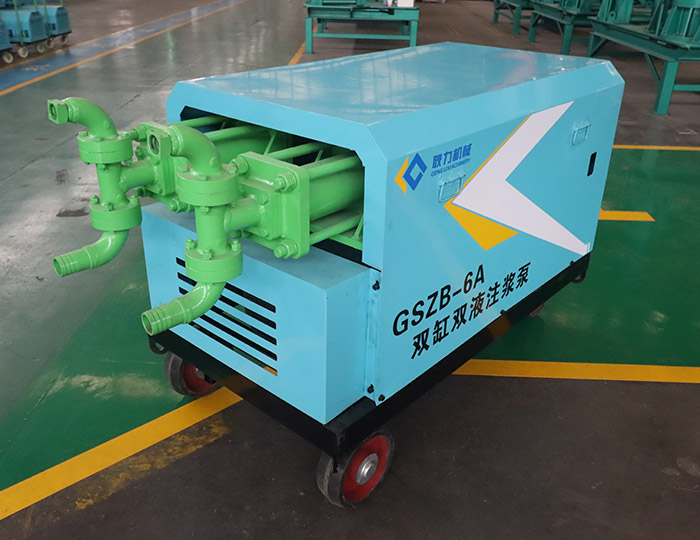

GSZB-6A double-cylinder double-liquid grouting pump is mainly used in tunnel excavation and maintenance, foundation engineering of roads, bridges, dams, mines, high-rise buildings and various grouting constructions. It mainly uses hydraulic pressure to inject cement slurry and mortar into the cracks or cavities of rock or soil to prevent leakage, settlement, and solid foundation.
Production capacity: 6m3/h
System Pressure: 0-11Mpa
Outlet pressure: 0-6Mpa
Conveying distance: Horizontal 300m/Vertical 100m
Small size, light weight, easy to move
The whole machine has a reasonable layout, small size, light weight, easy to move and transport, and can work in complex and narrow spaces.High efficiency, large grouting volume and large outlet pressure
This product is a double-cylinder double-action grouting pump with high efficiency, large grouting volume and large outlet pressure.Safe and reliable
Add contactor and thermal relay to protect the motor, safe and reliable.Large flow radiator is adopted to increase the heat dissipation area
Large flow radiator is adopted to increase the heat dissipation area, the heat dissipation effect is stronger, and the system runs more smoothly.The pressure can be adjusted within the design range
The pressure can be adjusted within the design range. When the pressure exceeds the set value, the relief valve will open and the system will release pressure, thereby protecting the system.The tail of the hood is designed with double doors
The tail of the hood is designed with double doors, which is convenient for filling hydraulic oil and observing the pressure gauge.| Item | Parameters |
| Production capacity | 6m³/h |
| System pressure | 0-11Mpa |
| Outlet pressure | 0-6Mpa |
| Conveying distance | Horizontal 300m/Vertical 100m |
| Suction inlet | Φ51mm |
| Grouting outlet | Φ32mm |
| Aggregate diameter | ≤5mm |
| Motor power | 15kw |
| Overall dimension | 1800*800*1140mm |
| Total weight | 580kg |
