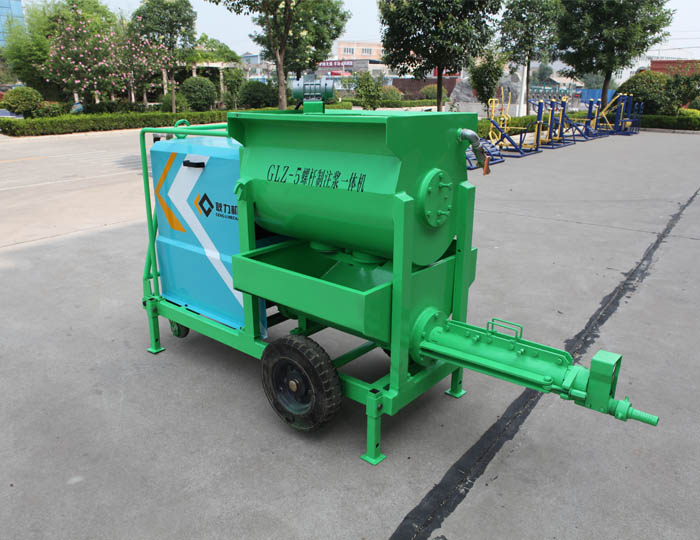

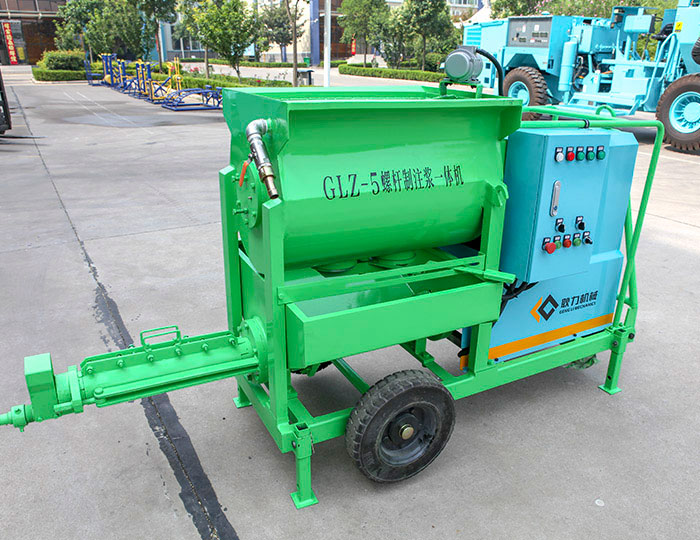

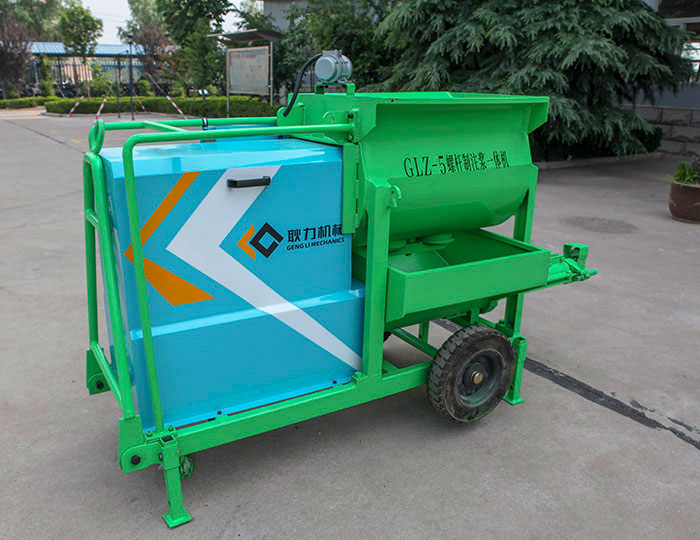

GLZ-5 Screw Grouting/Spraying Machine

The main function of GLZ-5 Screw Grouting/Spraying Machine is to push the cement mortar to overcome the resistance of the pipeline to reach the pouring site. It is widely used in highways, railway tunnels, urban subways, hydropower stations, underground caves/chambers and other anchoring grouting projects.

Parameters

Production capacity：5m³ /h
Sand particle size：≤3mm
Water-cement ratio：≥0.3mm
Delivery distance：Horizontal 60m/Vertical 30m

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Compact structure and reliable performance

Compact structure, easy operation, reliable performance and imported electrical elements.

The mixing and grouting can be realized at the same time

Built-in mixing mechanism available manual or auto mixing, to realized mixing and grouting at the same time.

Light weight and wheeled chassis, easy to move

Light weight and wheeled chassis, easy to move.

Applicable to a wide range of water-cement ratio

Applicable to a wide range of water-cement ratio, especially suitable to high concentration mortar.

Grouting sand with a wide range of particle size

Applicable to high cement-sand ratio and wide range of sand particle diameter.

Continuous grouting

Continuous grouting, avoid high transient pulse pressure of piston pump.

Passive pressure-rise to ensure grouting pressure

Passive pressure rising; when the grout is full, the pressure rises gradually for easier control and maintaining of grouting pressure.

Grouting is safe and reliable

Once the grouting pressure has reached the designed value, it turns to release the pressure.

As a single fluid pump, additives like accelerator is not allowed

As a single fluid pump, additives like accelerator is not allowed.

PARAMETERS

Model		GLZ-5
Production capacity		5m³/h
Total motor power		10.5KW
Sand particle size		≤3mm
Water-cement ratio		≥0.3mm
Delivery distance	Horizontal	60m
	Vertical	30m
Mixing hopper	volume	210L
	Feeding height	1247mm
Machine weight		660kg
Dimension		2566×868×1247mm
