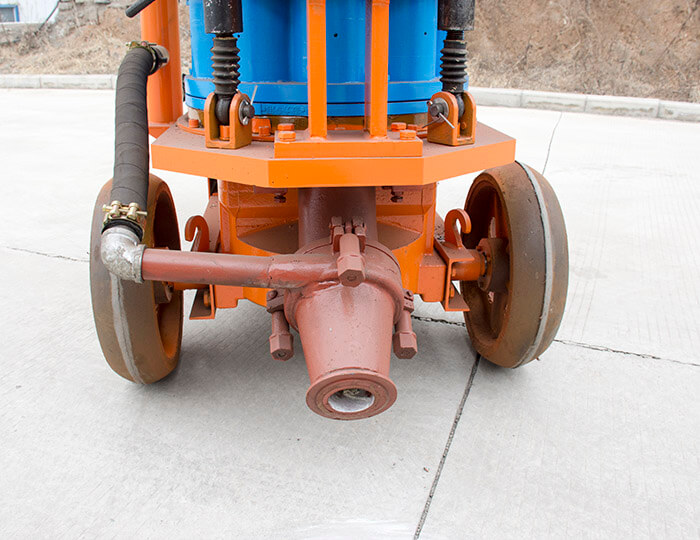

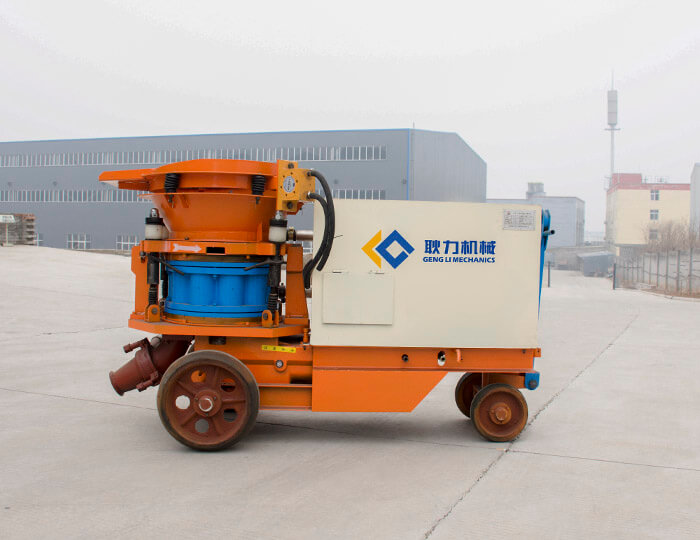

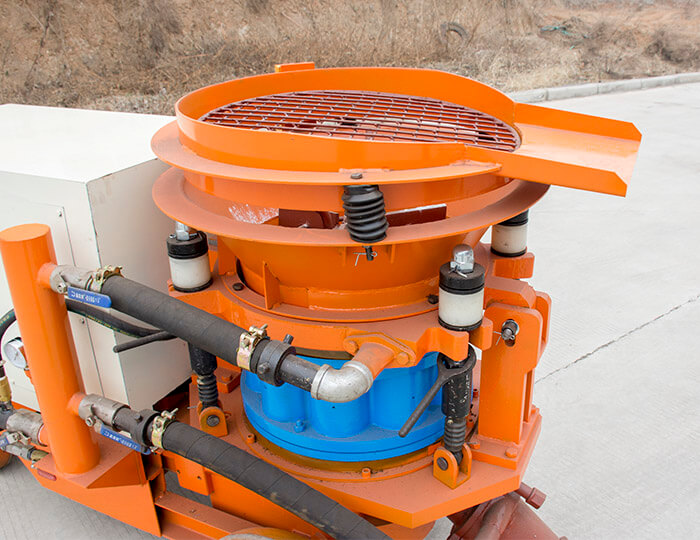

Dry/Wet-mix Shotcrete Machine GSP-D


Dry/Wet-mix Shotcrete Machine GSP-D is mainly used for spraying concrete construction operations such as tunnels, underground projects, slope protection, etc. This shotcrete machine is a dry and wet shotcrete machine, which makes up for the shortcomings of only dry spraying or only wet spraying, and can meet the spraying needs of more customers.

Parameters
  • Production capacity:7m³ /h

  • Inner diameter of delivery pipe:Φ57 mm

  • Theoretical delivery distance:Horizontal:30m Vertical:20m


FEATURES

Reliable performance, easy operation

Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.
PARAMETERS
Item Parameters
Production Capacity 7m³/h
Working Pressure 0.4-0.6Mpa
Maximum Aggregate Diameter 20mm
Total Weight 860kg
Overall Dimension 1850*720*1110mm
Theoretical Conveying Distance 30/20m(Horizontal/Vertical)
Maximum Air Consumption 12m3/min
Main Motor Power 7.5kw
Voltage Classes 380V
Feeding Capability for Liquid Accelerating Agent 0-240L/h
Inner Diameter of Conveying Pipe ¢57mm
Dust Concentration ≤10mg/m³
Feeding Height 1.1m
