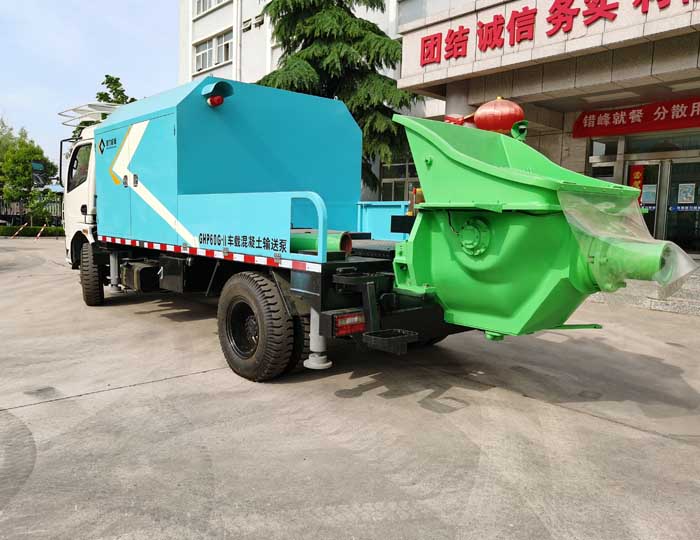

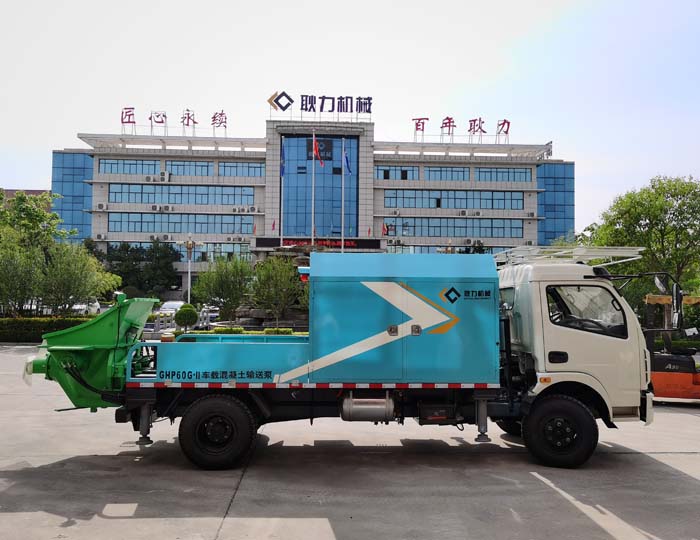

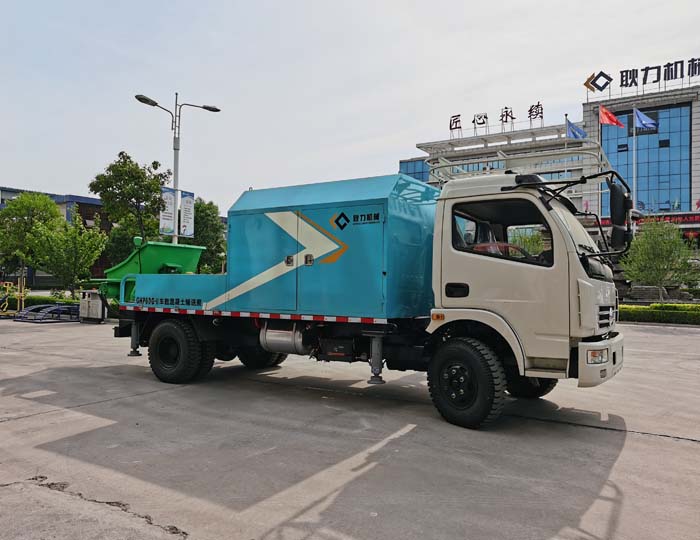

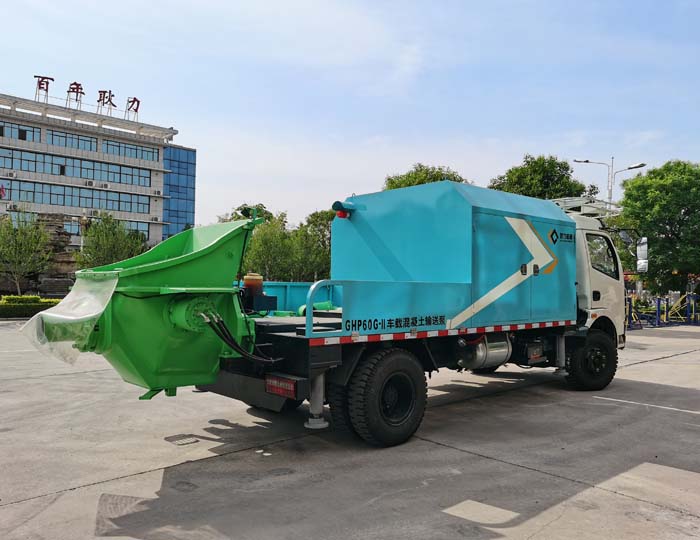

GHP60G-Ⅱ Truck-mounted concrete pump

GHP60G-Ⅱ truck-mounted concrete Delivery pump adopts self-propelled wheeled chassis and thrust generated by hydraulic pump to delivery dense flowing material directly from delivery pipe to the casting surface ;It is a mechanical equipment integrating mechanism, electro, and hydraulic, and widely used in highway, railway, tunnel, hydroelectric power station and etc.

Parameters

Production capacity：60m³/h
Engine power:76kw
Hopper capacity: 0.6 m³
Displacement of main pump:190ml/r

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

High pumping pressure, strong anti-plugging capacity

High pumping pressure, strong material adaptability, and strong anti-plugging capacity. Outlet pressure at 8MPa, and system pressure at 32MPa.

Equipped with a cab for easy transition

Truck-mounted structure with a cab for easy transition

Wireless remote control &wired remote control to satisfy various operational requirements

Specially equipped with a wireless remote controller and a wired remote controller, convenient for the communication and operation between conductors above the secondary liner and the lower discharge personnel.

High pumping pressure, greatly improved working efficiency

Pumping 60m³ per hour to meet construction requirements and improve working efficiency .

Wire-controlled handle device to make operation more convenient

The side panel of rear bucket can be opened and closed as needed, convenient for loading and unloading.

Specially designed to make the side panel open & close easily, make it convenient to load and unload

Cab with ceiling design for easier construction

Cab with ceiling design to prevent concrete from falling on the glass.

Mature and stable chassis, strong mobility, easy movement

Self-propelled wheeled chassis with strong mobility, convenient transition and flexible movement

High automation, easy operation

Electrical appliances are centralized control by PLC with reliable performance, long life, programmed working and easy operation

Grouting with small pulsation and good continuity

Machine has stable performance, less wearing parts, small grouting pulsation, good continuity and low maintenance cost

PARAMETERS

Machine data	Dimension	L7300W2160H2570mm
Machine data	Total weight	9500kg
Pumping system	Production capacity	60m³/h
	Cylinder bore	230mm
	Pumping stroke	1400mm
	Delivery pipe diameter	Φ180-φ125
	Outlet pressure of concrete	8.0Mpa
	Hopper volume	0.6m³
	Feeding height	1600mm
	Distribution valve of concrete	S tube valve
	Lubrication system	Manual+Auto
	Cooling way	Air cooling
Traveling chassis	Engine power	76kw
	Wheelbase	4000mm
	Traveling speed	0-25km/h
	Maximum climbing degree	30%
	Braking way	Air cutting brake
Hydraulic system	Main motor power	75KW
	Fuel tank capacity	400L
	Pullution degree of hydraulic oil	8-9 NAS1638
	Main pump displacement	190ml/r
