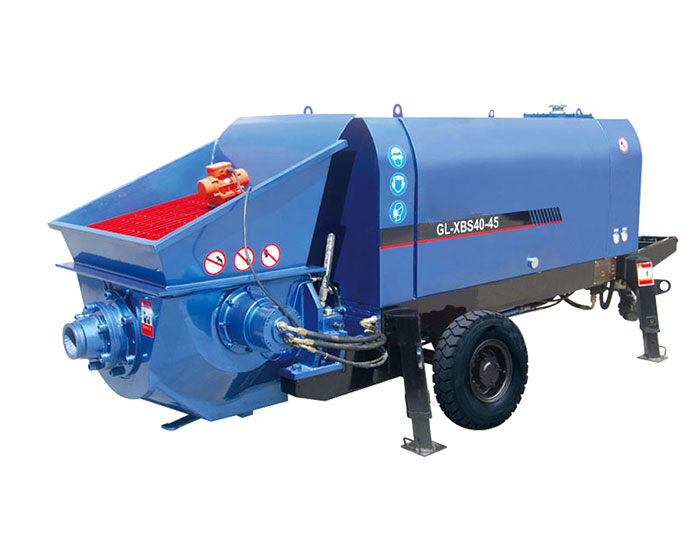

GL-XBS40 Trailer Concrete Pump

Parameters

Theoretical delivery volume: 40m³/h
Theoretical delivery pressure: 13Mpa
Max. diameter of aggregates: 30mm
Max. delivery frequency: 30times/min

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Wide range of applications

GL-XBS series products are also widely used for the conveying of fine stone concrete, fir-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.

The inner diameter of conveying pipe

The inner diameter of conveying pipe has developed into Φ100 based on former Φ80 so that XBS series products can convey concrete with diameter no more than 20mm,which makes XBS series products have broader applications such as the conveying of mortar, small stones and large aggregate concrete.

PARAMETERS

	Items	Units	Parameters
Whole machines performance	Theoretical max. discharging volume	m³/h	40
	Theoretical max. delivery pressure	Mpa	13
	Max. delivery frequency	times/min	30
	The type of distribution valve	/	S valve
	Specification of delivery cylinder	mm	Φ140×800
	Specification of main oil cylinder	mm	Φ80/Φ50×800
	Outlet opening diameter	mm	Φ125
	Hopper capacity	L	300
Power system	Rated voltage	V	380
	Main motor power	Kw	45
	Rated speed	r/min	1470
	Assistant motor power	Kw	3
	Rated speed	r/min	1430
Hydraulic system	Hydraulic oil circuit type	/	Open circuit
	Max. oil pressure of pumping system	MPa	25
	Max. oil pressure of mixing system	MPa	9
	Max. mixing speed	r/min	24
	Oil tank capacity	L	200
Other parameters	Max. diameter of aggregates	mm	30
	Inner dia. of delivery pipe	mm	Φ80
	Dimension(length×width×height)	mm	4300×1500×1500
	Overall weight	Kg	2100
	Pulling speed	Km/h	≤8
