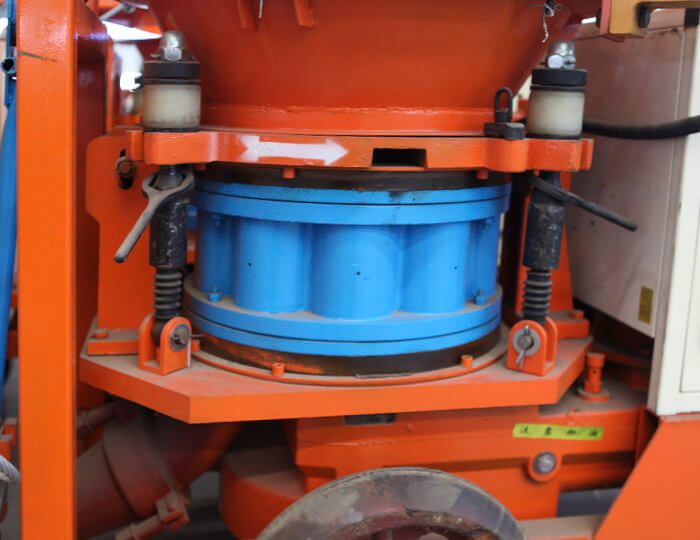

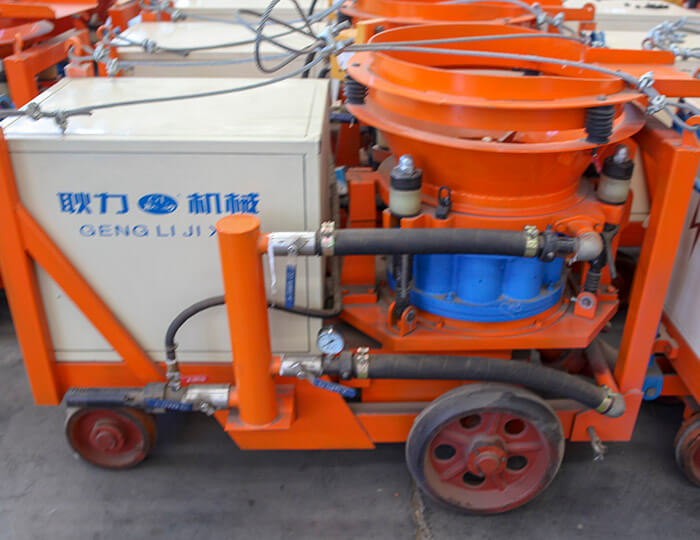

PZ-7F Dry shotcrete machine


The PZ-7F Dry shotcrete machine is equipped with a lifting hook and an anti-collision frame, which makes it more convenient for lifting and transportation, and can effectively protect the material hopper and the electric control box from damage during the lifting process.
Parameters
  • Production capacity:7m³ /h
  • Working pressure:0.4-0.6MPa
  • Inner diameter of delivery pipe:Φ57 mm
  • Maximum aggregate diameter:20mm
FEATURES

Reliable performance, easy operation

Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life, easy to lift.
PARAMETERS
Production capacity 7m³/h
Working pressure 0.4-0.6Mpa
Inner diameter of delivery pipe Φ57mm
Maximum delivery distance Horizontal 200m,Vertical 20m
maximum aggregate diameter 20mm
Water cement ratio 0.4-0.45
Maximum air consumption 12m³/min
Feeding height 1100mm
Motor power 7.5KW
Voltage grade 380V
Dimension 1700*850*1150mm
Machine weight 850kg
