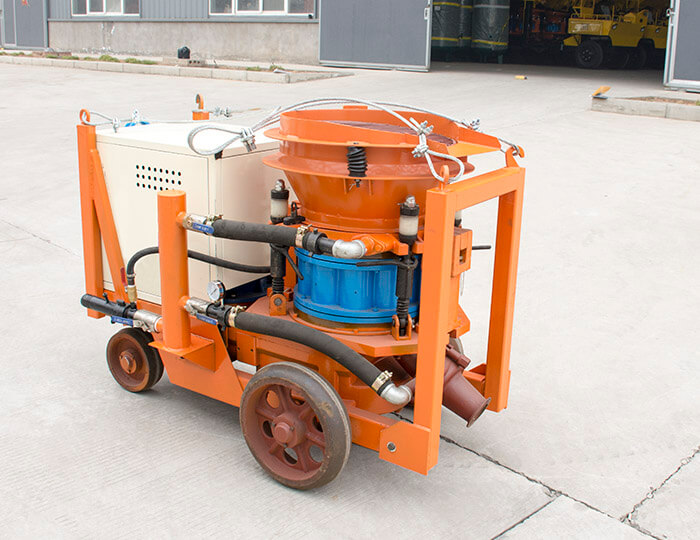

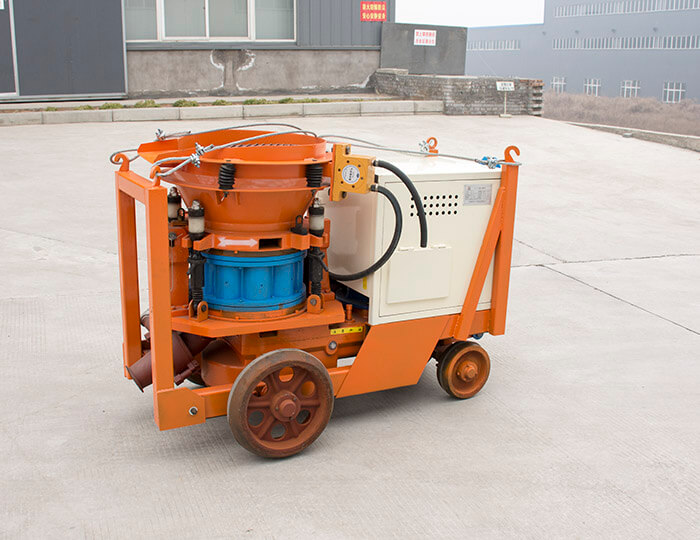

PZ-6F Dry shotcrete machine


The PZ-6F Dry shotcrete machine is equipped with a lifting hook and an anti-collision frame, which makes it more convenient for lifting and transportation, and can effectively protect the material hopper and the electric control box from damage during the lifting process.

Parameters
  • Production capacity:6m³ /h

  • Working pressure:0.4-0.6 Mpa

  • Inner diameter of delivery pipe:Φ57 mm

  • Maximum air consumption:12 m³ /min


FEATURES

Added lifting hook and anti-collision frame

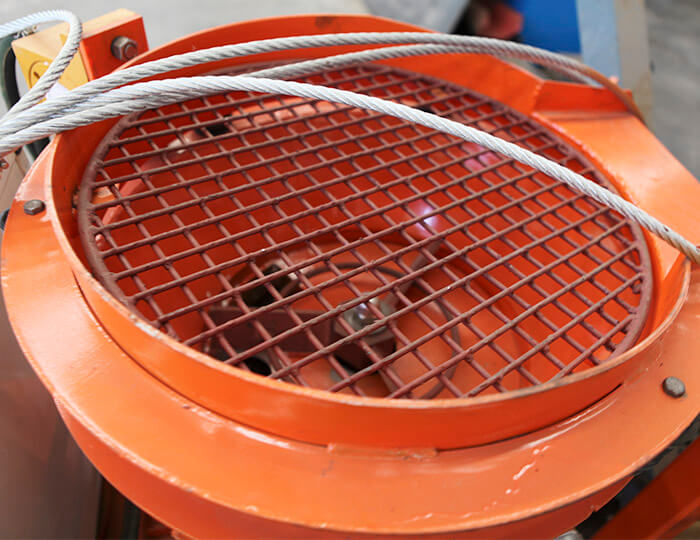

Added lifting hook and anti-collision frame, convenient for lifting and transportation, Effectively protect the material hopper and the electric control box from damage during the lifting process.

Medium working capacity, higher than that of PZ-5D

Medium working capacity, higher than that of PZ-5D

Low cost of the quick-wear parts and low resilience rato

Low cost of the quick-wear parts and low resilience rato
PARAMETERS
Production capacity 6m³/h
Working pressure0.4-0.6Mpa
Inner diameter of delivery pipeΦ51mm
Theoretical delivery distance Horizontal 200m,Vertical 20m
maximum aggregate diameter 20mm
Water cement ratio 0.4-0.45
Maximum air consumption 12m³/min
Motor model Y160M-6
Feeding height 1100mm
Motor power 7.5KW
Voltage grade 380V
Dimension 1600*850*1150mm
Machine weight 780kg
