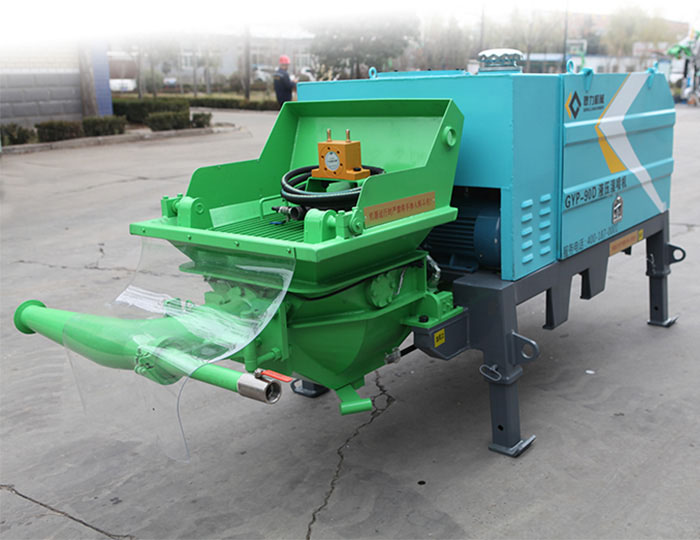

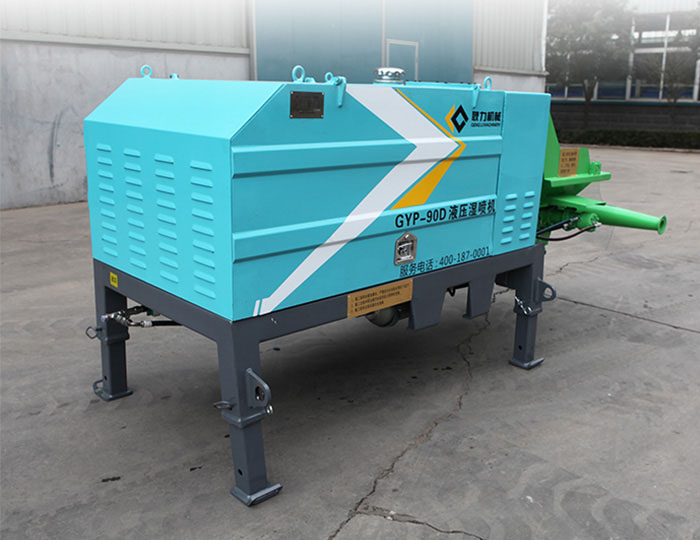

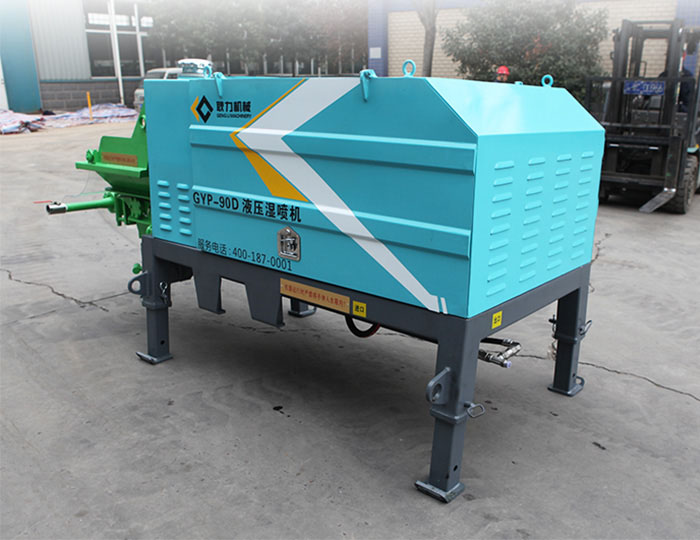

GYP-90D Hydraulic wet shotcrete machine


GYP-90D hydraulic wet shotcrete machine is using the thrust of the hydraulic pump to make the two cylinder reciprocating, the dense flow material will be sent to the mixing pipe by conveying pipe, it becomes thin flow by compressed air, then through the pipe to the nozzle. Add a certain proportion of the accelerator to the nozzle then spray directly to the surface.

Parameters
  • Production capacity :3-9m³ /h

  • System pressure:22MPa

  • Working wind pressure: 0.4-0.6Mpa

  • Maximum diameter of aggregate: 15mm


FEATURES

Stable performance

Stable performance, less wearing parts and low maintenance cost.

Throughput can be adjusted as needed

Throughput can be adjusted as needed (Switching time 16 times/min).

The electrical appliance adopts PLC centralized control

The electrical appliance adopts PLC centralized control, reliable work, long life, easy operation.

Continuous spraying with less pulse

Continuous spraying with less pulse

Continuous and adjustable feeding for accelerator

Continuous and adjustable feeding for accelerator

Wire handle control makes the operation easier

Wire handle control makes the operation easier
PARAMETERS
Basic performanceParameters
Production capacity3-9m³/h
System pressure22Map
Outlet pressure of concrete6Mpa
Main motor power20KW
Cylinder bore×stroke120*600mm
Hopper volume0.3m³
Cement ratio0.45-0.6
Working wind  pressure0.4-0.6Mpa
Feeding height910mm
Maximum aggregate diameter15mm
Distribution valve of concreteS tube valve
Lubrication systemManual +auto
Slump of concrete120-180mm
Fuel tank volume129L
Cooling way of hydraulic oilAir cooling
Dust around the machine<6mg/m³
Resilient rate≤10%
Machine weight1550kg
Dimension3000×1360×1360mm
