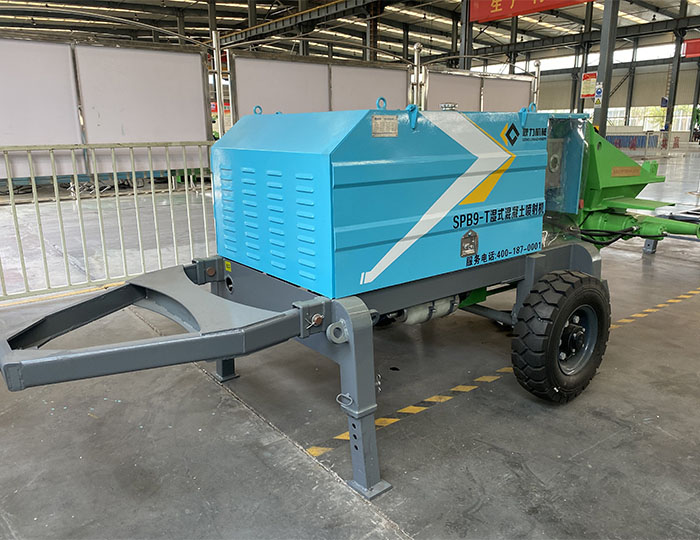

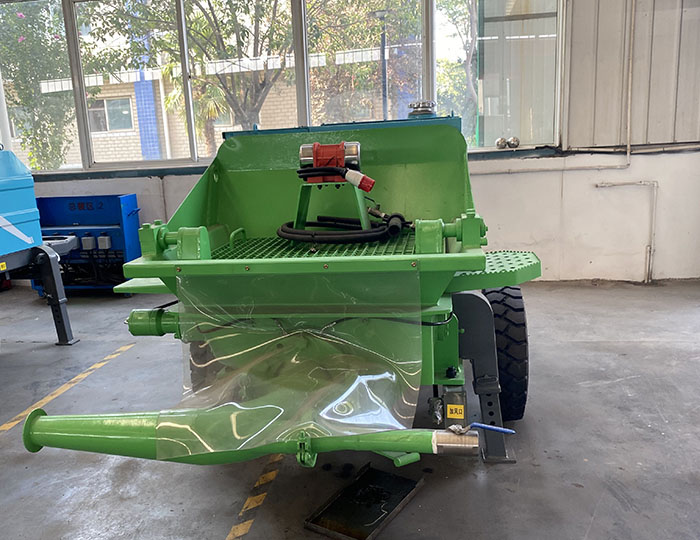

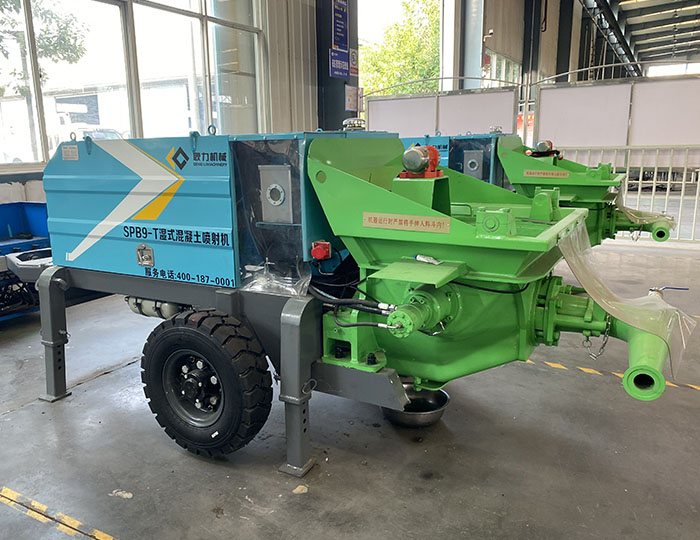

SPB9-T Hydraulic wet shotcrete machine


SPB9-T wet shotcrete machine uses the thrust generated by the hydraulic pump to make the two oil cylinders reciprocate alternately, and the dense flow material is sent from the conveying pipeline to the mixed flow pipe, and the compressed air forms a thin flow through the pipeline to the nozzle. A certain proportion of quick-setting agent is added at the nozzle, and it is directly sprayed onto the sprayed surface.

Parameters
  • Production capacity: 3-9m³ /h

  • Required air pressure: 0.4~0.6MPa

  • Max.aggregate size: 15mm

  • Max.conveying distance: 125m Horizontal / 50m Vertical



FEATURES

Stable performance

Stable performance, few wearing parts, low maintenance cost, with the mine safety certification

High manganese steel casting integrated nozzle

High manganese steel casting integrated nozzle, smoother, more wear-resistant, small pulsation, good continuity

PLC centralized control

PLC centralized control, reliable work, long service life, and easy operation

The pumping volume can be adjusted according to the needs

The pumping volume can be adjusted according to the needs, and the minimum output can reach 3 cubic meters

Easy to move

Equipped with walking tires and trailer frame, easy to move

Wire-controlled handle device, more convenient to operate

Wire-controlled handle device, more convenient to operate
PARAMETERS
Basic   performanceParameters
Production capacity3-9m³/h
Max.conveying distance125m Horizontal / 50m Vertical
Required air pressure0.4~0.6MPa
Max.pumping pressure6MPa
Max.aggregate size15mm
Feeding height1200mm
Concrete slump80150mm
Concrete cylinder   (Bore*stroke)140×580mm
Cylinders2
Hydraulic cylinder pressure16MPa
Agitator pressure9MPa
Swing cylinder pressure12MPa
Noise116dB(A)
Motor Power22KW
Oil tank capacity135L
Machine dust<6mg/m³
Hopper volume0.3m³
Concrete distribution valveS-tube
Cooling wayAir cooling
Rebound10%
Machine weight2340kg
Dimension(L*W*H)4440×1550×1650mm
