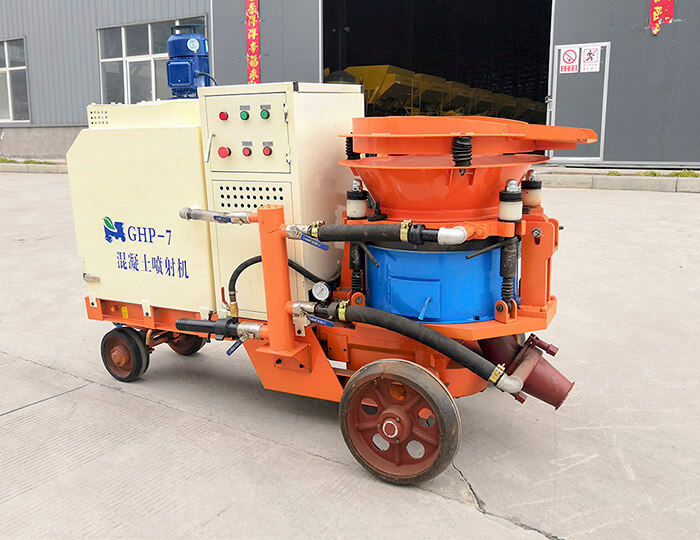

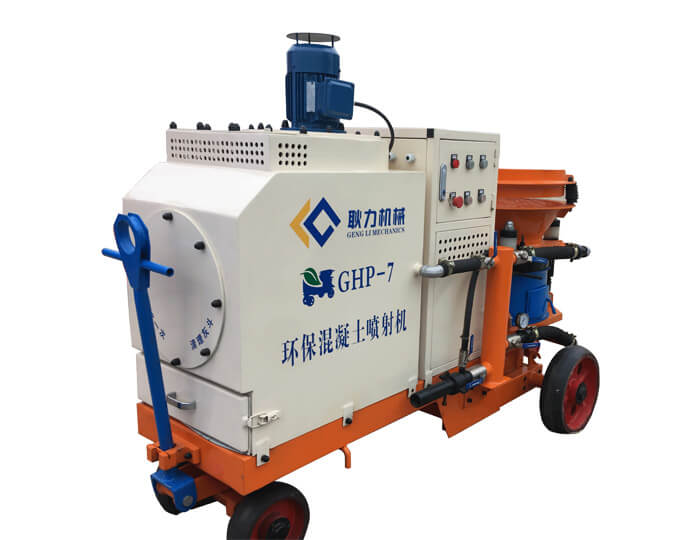

GHP-5D/7D Environmental-friendly dry shotcrete machine


GHP-5D/7D is dry-mix environmentally concrete shotcrete machine developed by Gengli independently. Having same working capability with PZ-5D/7D, which is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works etc.
Parameters
  • Machine weight:900kg/950kg
  • Production capacity:5-5.5m³/h / 7m³/h
  • Inner diameter of delivery pipe:51mm / 57mm
  • Dust removal rate:99.9%

FEATURES

Reliable performance, easy operation

Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.

Almost zero dust emission

Almost zero dust emission, and complying with social theme “environmental protection”.

Dust-removal rate up to 99.9%

Adopt cartridge type dust collector, dust-removal rate up to 99.9%, low dust removal resistance, simple structure and easy maintenance.
PARAMETERS
Model GHP-5D GHP-7D
Machine weight 900kg 950kg
Production capacity 5-5.5m³/h 7m³/h
Working pressure 0.4-0.6Mpa 0.4-0.6Mpa
Inner diameter of delivery pipe Φ51mm Φ51mm
Maximum air consumption 8m³/min 12³/min
Motor power 6.6KW 8.6KW
Dust removal rate 99.99% 99.99%
Dust removal air volume 600-800m³/h 600-800m³/h
