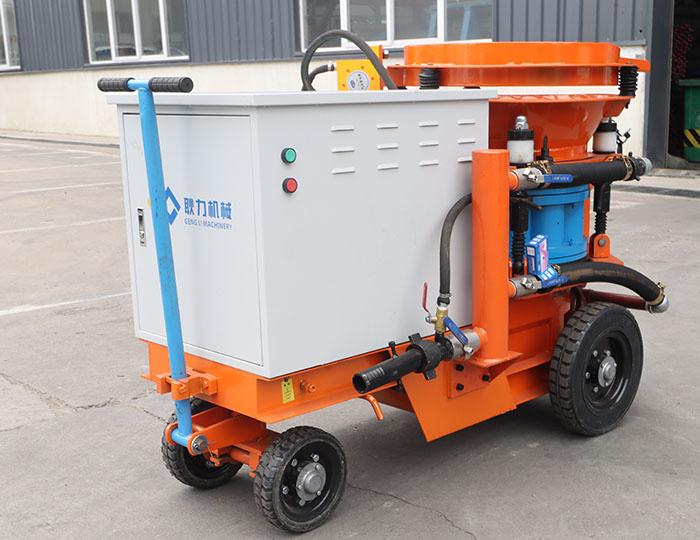

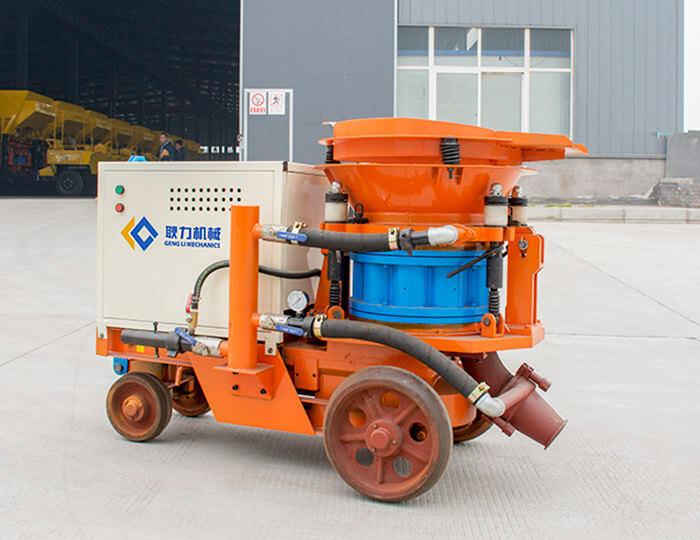

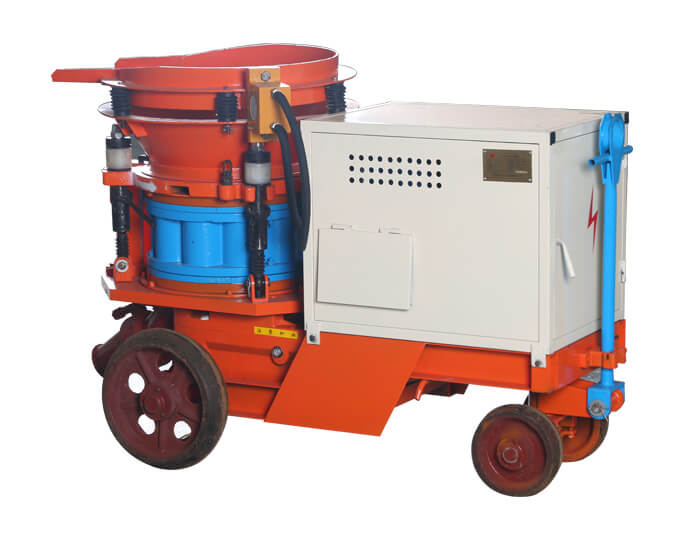

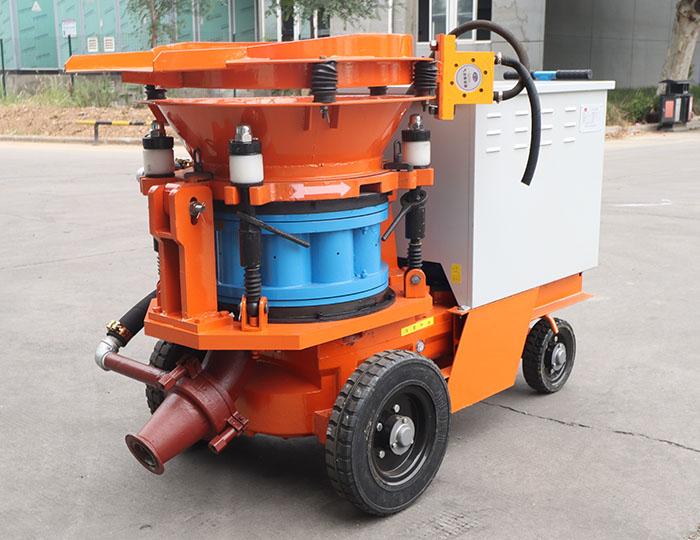

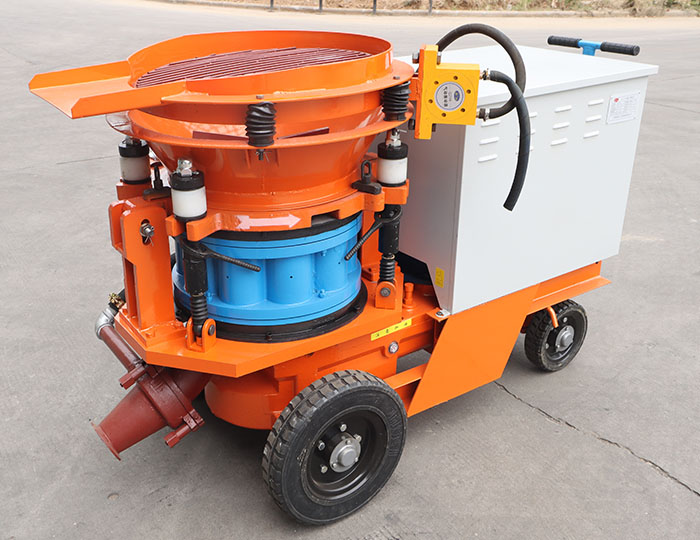

PZ-7D Dry shotcrete machine


It is a concrete shotcrete equipment with more capacity, higher efficiency and more reasonable structure developed by our company independently, which is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works etc.

Parameters
  • Production capacity:7m³ /h

  • Working pressure:0.4-0.6Mpa

  • Maximum aggregate diameter:20 mm

  • Total weight:800kg


FEATURES

Reliable performance, easy operation

Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.
PARAMETERS
Production capacity 7m³/h
Working pressure 0.4-0.6Mpa
Inner diameter of delivery pipe Φ57mm
Theoretical delivery distance Horizontal 200m,Vertical 20m
maximum aggregate diameter 20mm
Water cement ratio 0.4-0.45
Maximum air consumption 12m³/min
Feeding height 1100mm
Motor power 7.5KW
Voltage grade 380V
Dimension 1660*800*1100mm
Machine weight 800kg
