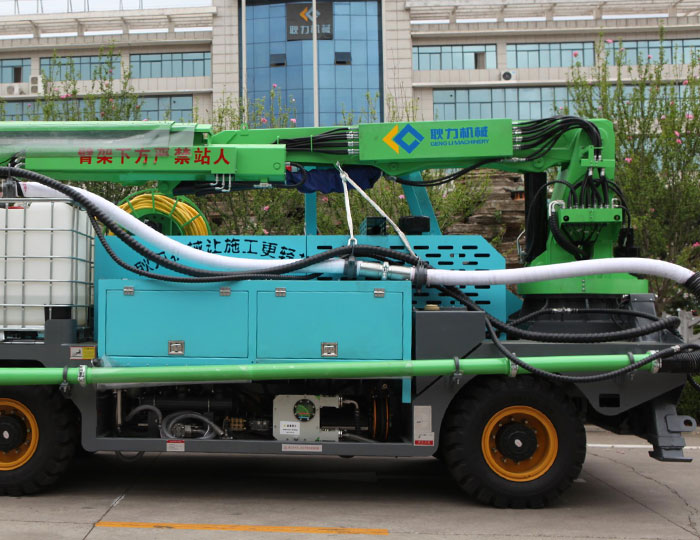

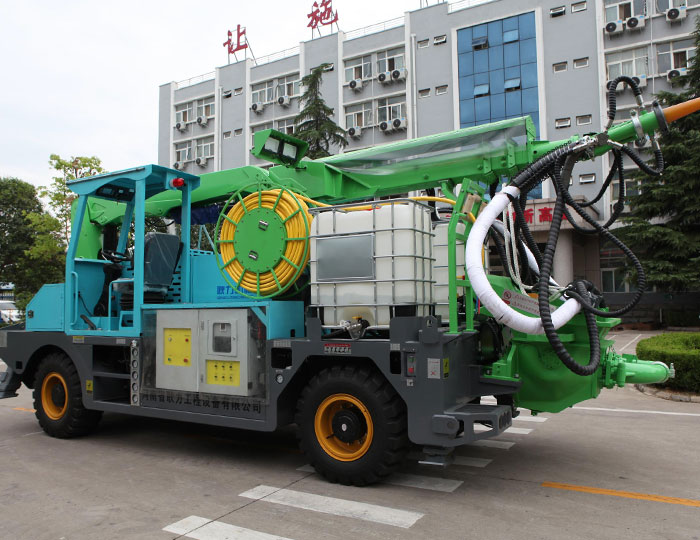

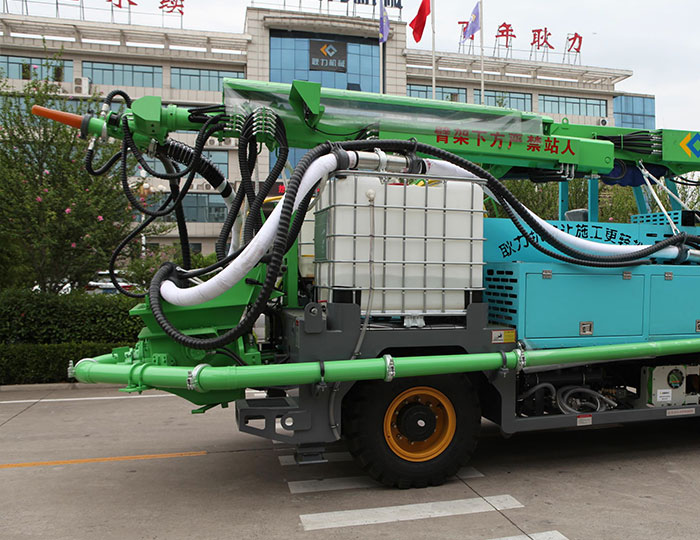

GHP3515H Engineering Truck-mounted Robot Shotcrete Machine

GHP3515H Engineering Truck-mounted Robot Shotcrete Machine

GHP3515H Concrete Spraying Machine is a new cost-effective and high-stability tunnel spraying and anchoring construction equipment newly launched by our company. It has absorbed many years of wet spraying machinery design experience in design and manufacturing, combined with famous brand products at home and abroad. The advantages of the production of a cost-effective spraying equipment, the main performance parameters have exceeded the level of similar products in the world.

Parameters

Dimensions(L×W×H): 7770×2645×3230mm
Total weight: 15500kg
Shotcrete Capacity: 35m³ /h
Conveying Pipe Diameter: Φ125～Φ90mm

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Remote Control

Customized remote control is adopted, which is durable, strong anti-interference ability, and 100 meters long-distance wireless remote control.

Dosing Pump

Accurate control by frequency conversion motor, Real-time monitoring of traffic.

Power Cable

Tensile and wear-resistant cables are standard configurations, which have a strong ability to resist voltage fluctuations and prolong service life.

Concrete Pump

It adopts large bore and long-stroke pumping system, which has strong suction capacity. In theory, it can pump 35 cubic meters of concrete per hour, while reducing wear and prolonging service life.

PARAMETERS

Item	Specification	Unit	Parameter
Machine Data	Size(L×W×H)	mm	7770×2645×3230
Machine Data	Weight	kg	15500
Pumping System	Shotcrete Capacity	m³/h	35
	Oil Cylinder Bore	mm	Φ100
	Piston Cylinder Bore	mm	Φ180
	Piston Cylinder Stroke	mm	1000
	Conveying Pipe Diameter	mm	Φ125～Φ90
	Max. Aggregate Size	mm	Φ15
	Concrete Outlet Pressure	bar	83
	Hopper Volume	m³	0.3
Traveling System	Traveling Method	/	Wheel
	Driving Axle	/	Wet Brake Axle
	Steering	/	Four Wheel Drive
	Min. Turning Radius	m	10
	Engine Power	kw	97
	Wheelbase	mm	3940×1876
	Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ	km/h	5/10/17.5/20
	Max. Climbing		36%（20°）
	Min. Ground Clearance	mm	300
	Braking Distance	m	5(20km/h)
Boom	Max. Spraying Height	m	Depth7.4～High15.8
	Max. Spraying Width	m	±13.5
	Swing Angle of Boom	（°）	270
	Rotary Angle around nozzle	（°）	±180
	Left-right turn angle of nozzle	（°）	±120
	Swing Angle of Nozzle	（°）	8（continuous）
	Swing Angle of Nozzle	（°）	8（continuous）
	Min. Tunnel Size	m	4
Dosing System	Doding Pump	/	YD25R
	Driving Method	/	Frequency Motor Drive
	Dosing Flow	L/h	1000
	Max. outlet pressure	bar	12
	Accelerator Tank	L	1000
Electric System	Cable Specification	/	3×35²
Electric System	Cable Length	m	80
Hydraulic System	Motor Power	kw	55
	Oil Tank Volume	L	370
	Hydraulic oil pollution degree	/	NAS1638-9
	Oil Pump Flow	ml/r	145
Washing System	Water Pump Model	/	3WZ-1814HM
	Water Tank Volume	L	500
	Drive Method	/	Hydraulic
