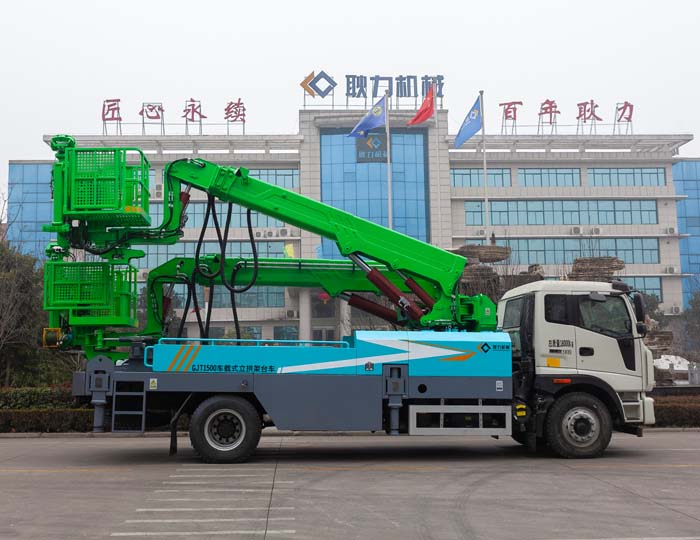

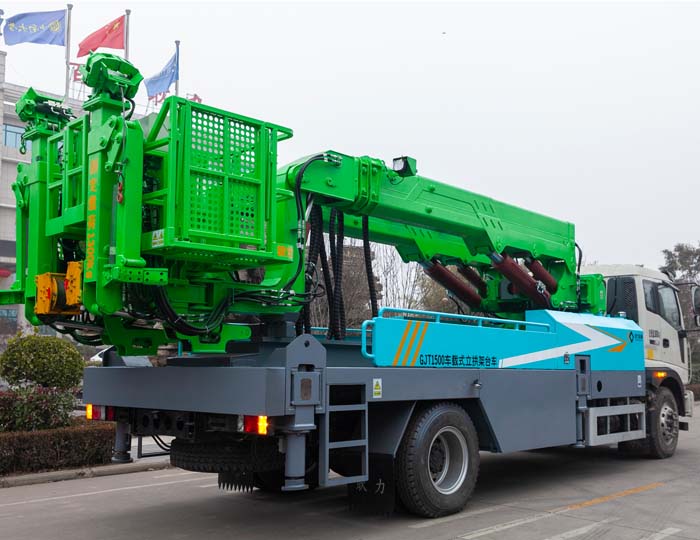

GJT1500 vehicle-mounted vertical arch trolley is a kind of new tunnel construction equipment which has many functions, such as arch installation, anchor rod mesh installation, steel mesh laying, auxiliary drilling, charging, dealing with undercut operation, copying quality inspection, air/water pipe installation, defect repair and so on.
Engine power: 132kw
Pitch angle of working arm: -20°~60°
Horizontal swing angle of working arm: ±40°
Maximum lifting height: 12400mm
The whole machine adopts automobile chassisThe driving speed can reach 80km/h, which is flexible and convenient for transition
No need to connect to the power supply, the equipment is fast in placeOne device can take care of multiple aspects, reducing equipment investment. Vehicle chassis power, no need to connect to an external power source, and the equipment can be installed quickly.
Boom + 2 hanging basket + 2 mechanical gripper structureEach arm can realize the automatic grabbing of the arch frame, the manipulator end can be fine-tuned, and the working device can slide as a whole
Retractable hanging basket, efficiently erect arch, mechanized construction workThe retractable hanging basket can replace the tunnel platform for auxiliary construction, meet the needs of various operations, and efficiently erect the arch and mechanized construction operations.
Support remote operation, easier operationThe operation mode adopts remote control operation, which can be operated in three places, such as hanging basket operation table operation and electric control box operation, so as to facilitate the operation of personnel in multiple positions.
With voice broadcast function, high securityVoice broadcast is configured during operation to effectively prevent misoperation and greatly improve safety.
|Transport size (length×width×height)||9600×2520×3250mm|
|Maximum travel speed||80km/h|
|Maximum climbing ability||27%|
|Minimum ground clearance||310mm|
|Approach / departure angle||20°、15º|
|Pitch angle of working arm||-20°~60°|
|Horizontal swing angle of working arm||±40°|
|Telescopic stroke of working arm||5470mm|
|Maximum lifting height||12400mm|
|Horizontal swing range||17000mm|
|Maximum load of boom||1500kg|
|Maximum clamping load||1300kg|
|Sliding stroke of arm base||3800mm|
