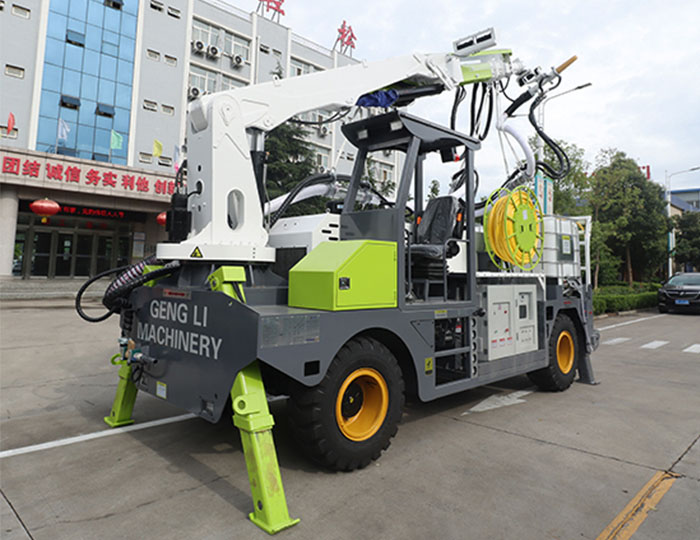

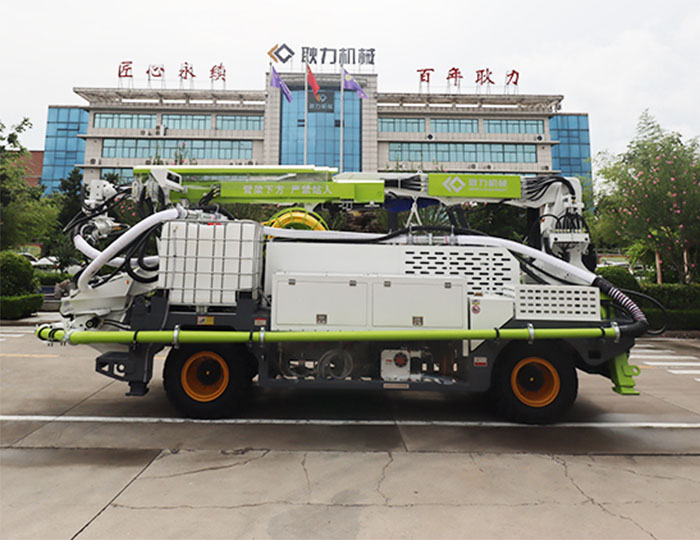

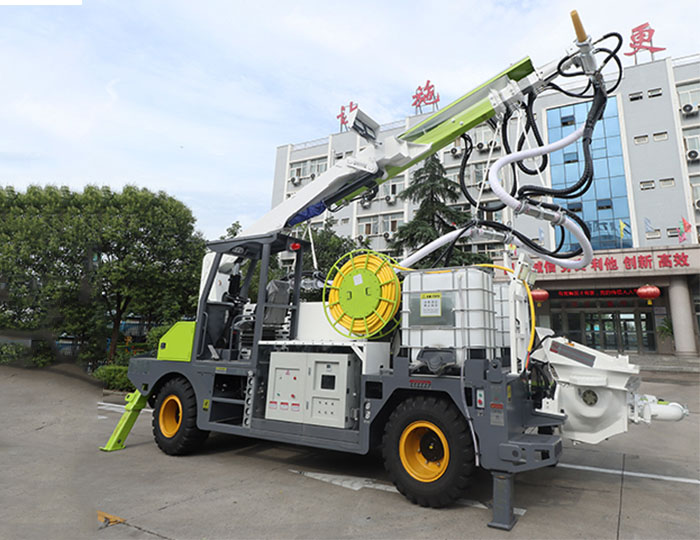

GHP4015T Engineering Concrete Wet Spray Trolley

GHP4015T Engineering Concrete Wet Spray Trolley

GHP4015T engineering concrete wet spray trolley is a newly launched tunnel spray anchor construction equipment with high cost performance and high stability by our company. By integrating with the self-developed cloud platform technology, remote fault diagnosis, maintenance reminders and other functions can be performed on the equipment.

Parameters

Maximum theoretical spraying capacity: 40m³/h
Conveying pipe: ф125～ф90mm
Max.aggregate size: ф15mm
Max.pumping pressure: 83bar

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Robot arm

After tens of thousands of fatigue strength tests, longer service life, hydraulic controlled, sensitive operation.

Chassis system

125kw engine, adapt to an altitude of 4000 meters, and with hydraulic transmission, electronically controlled power shift without stopping, more convenient to control, stable performance.

Electronic control system

Adopting a special controller for construction machinery, which is more resistant to dust and water; the failure rate is extremely low.

Concrete pump

Adopting large pumping cylinders, which has strong suction capacity, reducing wear and extending service life.

PARAMETERS

Item	Basic performance	unit	parameter
Machine data	Vehicle size(L×W×H)	mm	7770x2645x3230
Machine data	Total Weight	KG	15500
Pumping system	Maximum theoretical spraying capacity	m3/h	40
	Drive cylinder bore	mm	ф100
	Concrete cylinder bore	mm	ф180
	Concrete cylinder stroke	mm	1000
	Conveying pipe	mm	ф125～ф90
	Max.aggregate size	mm	ф15
	Max.pumping pressure	bar	83
	Hopper volume	m3	0.3
Chassis	Traveling way	/	Wheel type
	Drive axle	/	Wet Brake Axle
	Steering	/	Four -wheel steering
	Driving way	/	Four-wheel driving
	Minimum turning radius	m	5.8
	Engine Power	kw	125
	Wheelbase×Wheel tread	mm	3900 × 1920
	Traveling speed	km/h	0～15
	Max.climbing degree	/	30%
	Min.ground clearance	mm	346
	Braking Distance	m	5(20km/h)
Robotic arm	Max.spraying height	m	Depth 7.4～Height 15.8
	Max.spraying width	m	13.5
	Swing angle of arm	°	270
	Rotation angle-nozzle	°	土180
	Left-right rotation angle-nozzle	°	120
	Nutation angle	°	8 (continuous)
	Nozzle swing angle	°	8 (continuous)
	Min.working section-tunnel	m	4
Additive pump	Pump model	/	YD25R-CL1.5BP
	Driving way	/	Inverter motor drive
	Flow rate	L/h	1000
	Max.outlet pressure	bar	10
	Additive tank volume	L	1000
Electrical System	Cable specification	mm2	3x50+1x16
Electrical System	Cable length	m	80
Hydraulic system	Main motor power	kw	75
	Hydraulic oil tank volume	L	390
	Degree of hydraulic oil pollution	/	NAS1638-9
	Main oil pump displacement	ml/r	145
Cleaning system	Pump model	/	3WZ-1814HM
	Water tank volume	L	500
	Driving way	/	Hydraulic drive
	Working condition	m	＜4000(Altitude)
