This working site is slope protection, located in Manila, Philippines. According to the actual conditions o...

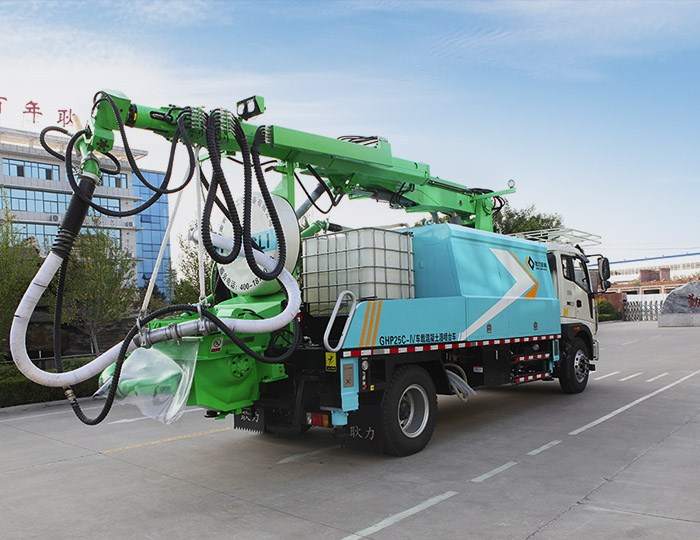

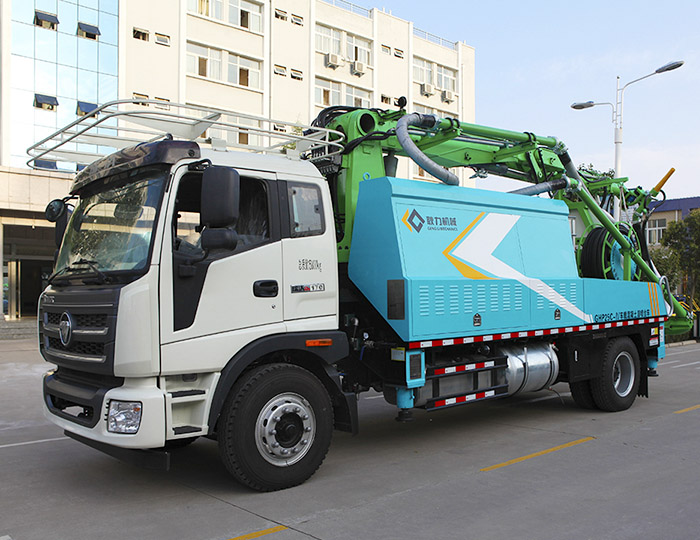

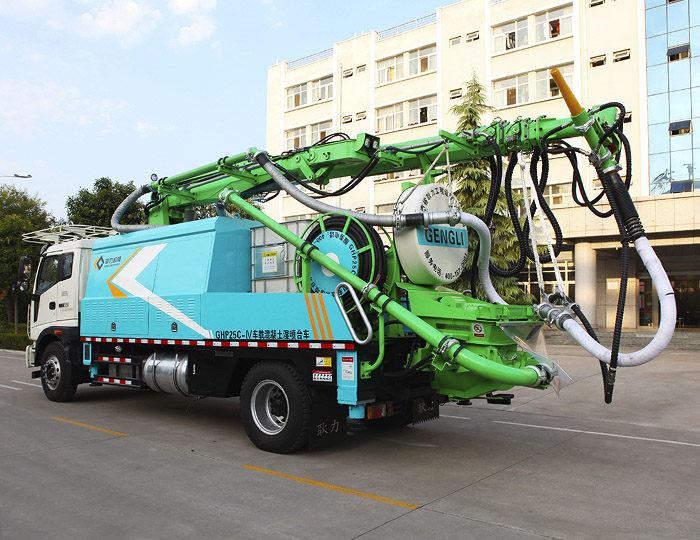

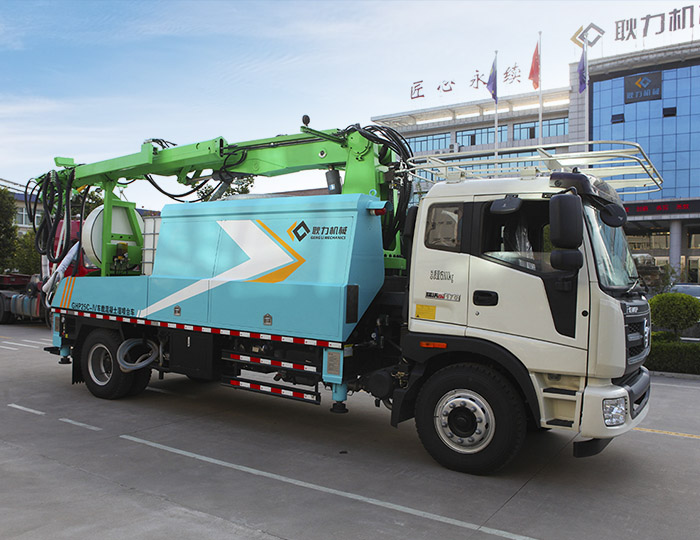

GHP25C-IV is our upgraded model based on the development of first three generations, and highly improved in performance and maneuverability. It has multi-joint DOF controlled manipulator with wide coverage and non-blind area to satisfy various construction requirements of cross-section tunnel and improve construction efficiency.
Maximum spraying height：16m
Maximum spraying width：2X13m
Maximum spraying displacement：25m³/h
ManeuverabilityDual-channel boom control system makes oil cylinder start flexibly, improve the sensitivity of three nozzles and truly realize “spray anywhere you point out”.
Visual electronic control systemThe electronic control system extracts main parameters in running state, monitoring real-time operation status.
New dynamics emulational mechanical armThe sectional software of mechanical arm is optimized designed, with the help of simulation optimization to attain a unity of strength and rigidity.
Pumping hydraulic systemOriginal pump is replaced by Danfoss pump to improve the reliability of the pumping system. Comprehensively upgrade the exit pressure level in the meantime to improve anti-blocking capacity and adaptability to the materials.
New optimization of concrete pumping pipeBased on a lot of primary experimental comparisons, we optimized the design of concrete pumping pipe; Adopting wear-resistant materials to casting bend pipe and reducer pipe and unequal thickness design method, which greatly prolong the service life.
|Pumping system||Maximum spraying height||Depth 6.6m~Height16.6m|
|Maximum spraying width||±14m|
|Theoretical spraying displacement||25m³/h|
|Delivery pipe diameter||Φ125-φ90|
|Maximum aggregate diameter||Φ16|
|Outlet pressure of concrete||75bar|
|Chassis system||Chassis model||FOTON|
|Maximum traveling speed||90km/h|
|Maximum climbing degree||30%|
|Minimum ground clearance||255mm|
|Mechanical arm||Maximum telescopic length||4600mm|
|Swing angle of arm||270°|
|Rotation angle around the nozzle||±180°|
|Left-right rotation angle of nozzle||±120°|
|Swing angle of nozzle||8°KK|
|Maximum spraying height||Depth 16m, Height16.6m|
|Maximum spraying width||±14m|
|Accelerator system||Accelerator pump model||ED-12|
|Driving way||Hydraulic drive|
|Maximum pressure of accelerator||20bar|
|Hydraulic system||Main motor power||55KW|
|Fuel tank capacity||450L|
|Accuracy grade of hydraulic oil||NAS1638-9|
|Main pump displacement||145ml/r|
|Washing system||Pump model||3WZ-1814HM|
|Water tank volume||200L|
