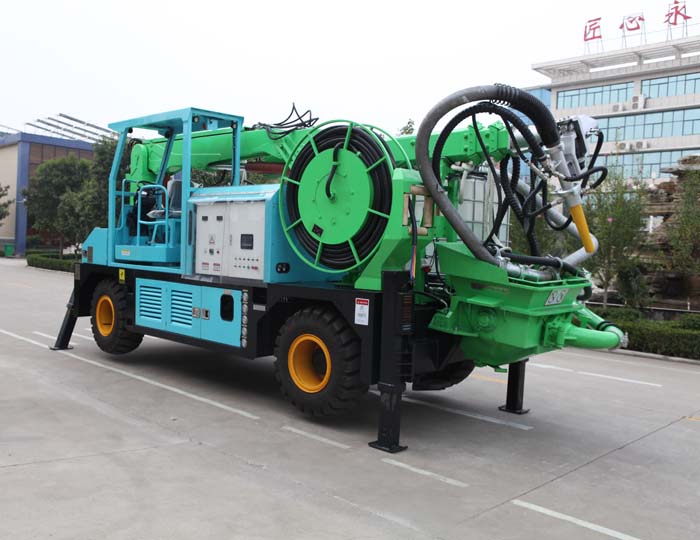

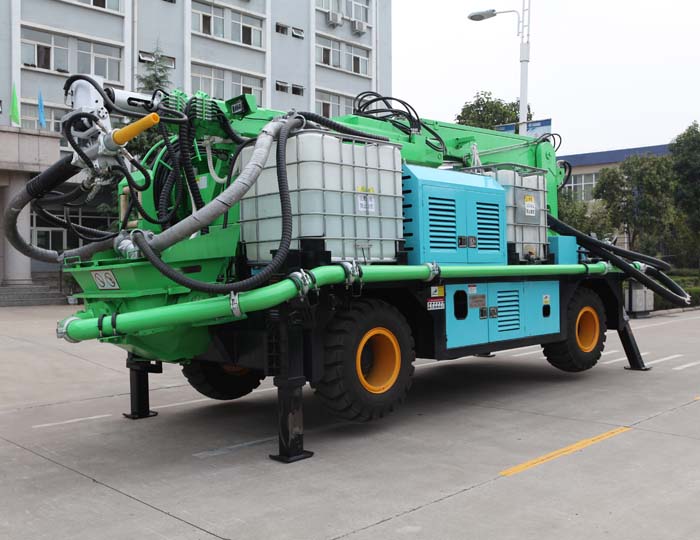

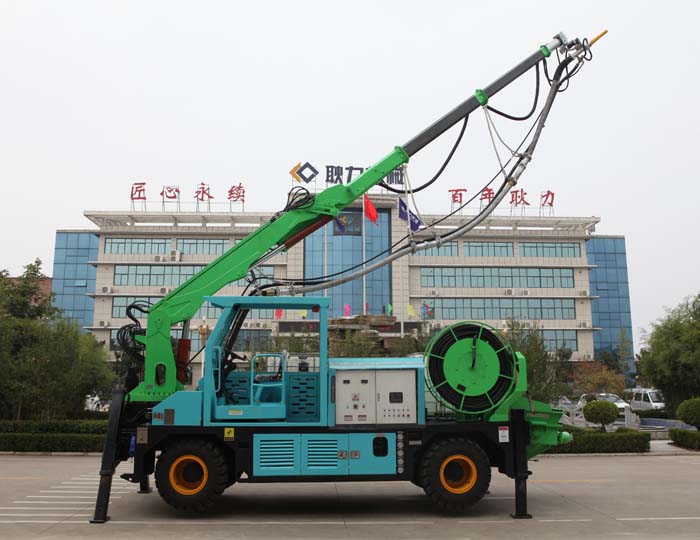

GHP3015D Engineering Truck-mounted Robot Shotcrete Machine


GHP3015D Engineering concrete wet spraying trolley is based on Gengli GHP3015G-II wet spraying trolley. The process has been upgraded again. Based on the principle of reducing costs and increasing efficiency, it has been independently developed and launched to ensure the high reliability and cost-effectiveness of the whole machine.

Parameters
  • Theoretical spraying displacement :30m³ /h

  • Cylinder bore :φ180mm

  • Cylinder stroke:1000mm

  • Delivery pipe diameter :φ125-φ90mm


FEATURES

Light-weight mechanical arm,flexible shotcrete

Newly dynamics light-weight mechanical arm,flexible shotcrete

Four- wheel drive &four-wheel steering

Mature truck chassis, four- wheel drive &four-wheel steering, strong power, fast climbing speed

Wireless remote control (wired control reserved)

Equipped with wireless remote controller and wired remote control is considered as well to meet your operational requirements.

500L large volume radiator, self-contained high pressure cleaning system

Equipped with high pressure cleaning system, water hose and 500L large volume radiator, convenient to clean.

Monitoring real-time operation status of engine

Engine monitor for visual display of parameters

Mechanical traveling system, more convenient maintenance

Mature mechanical traveling system with low failure rate and convenient maintenance

Self-equipped GPS remote failure diagnosis system

GPS remote positioning and failure diagnosis function to reduce failure waiting time positioning

High pumping pressure, greatly improved anti-plugging ability

Pumping system with high outlet pressure and large-diameter hose to achieve stronger anti-blocking capacity

Rotatable cab

Newly cab design, using rotatable cab to make it convenient to operate

Remote control nozzle air volume

Air volume can be remotely adjusted as needed to ease the operation

Filtering additive efficiently

The standard additive filtering device makes the metering pump more durable

Fully monitoring operation status of the engine

Working display to fully monitor operation data and status
PARAMETERS
Machine  data Dimension L7810*W2750*H3185mm
Total weight 16000kg
Pumping system Theoretical spraying displacement 30m³/h
Cylinder bore Φ180mm
Cylinder stroke 1000mm
Delivery pipe diameter Φ125~φ90
Maximum aggregate diameter Φ15
Hopper volume 0.3m³
Outlet pressure of concrete 83bar
Chassis system Walking mode Wheeled walking
Steering mode Four-wheel steering
Driving mode Four-wheel drive
Minimum turning radius 5.8m
Engine power 90kw
Wheelbase×track 3900×1830mm
Maximum traveling speed 20km/h
Maximum climbing degree 36%
Minimum ground clearance 357.5mm
Barking distance 5m(20km/h)
Mechanical arm Maximum spraying height 7.3m depth~15.8m height
Maximum spraying width ±13.5m
Swing angle of arm 270°
Rotation angle around the nozzle ±180°
Left-right rotation angle of nozzle ±120°
Swing angle of nozzle
Accelerator system Accelerator pump model SN-12
Driving way Hydraulic
Accelerator displacement 0~1000L
Maximum outlet pressure 20bar
Accelerator volume 1000L
Hydraulic system Main motor power 55KW
Fuel tank capacity 450L
Pollution degree of  hydraulic oil NAS1638-9
Main pump displacement 145ml/r
Washing system Pump model 3WZ-1814HM
Water tank volume 500L
Driving way Hydraulic
