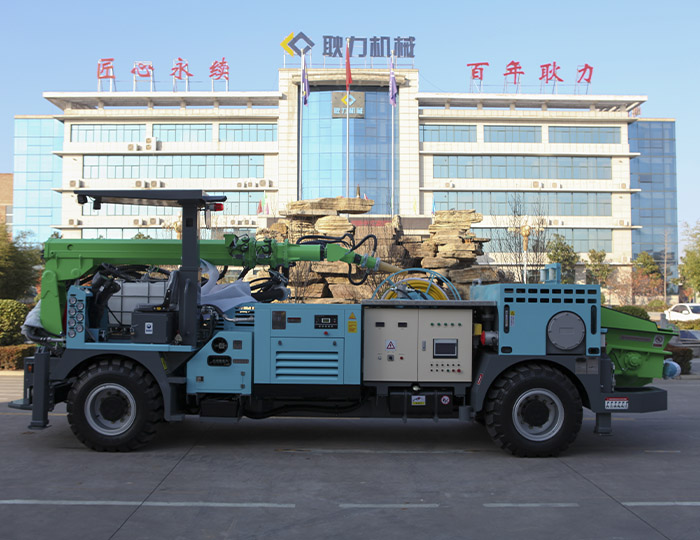

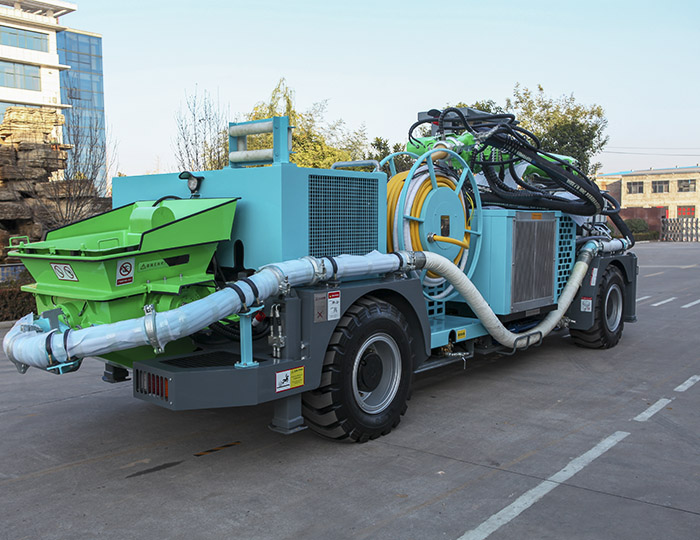

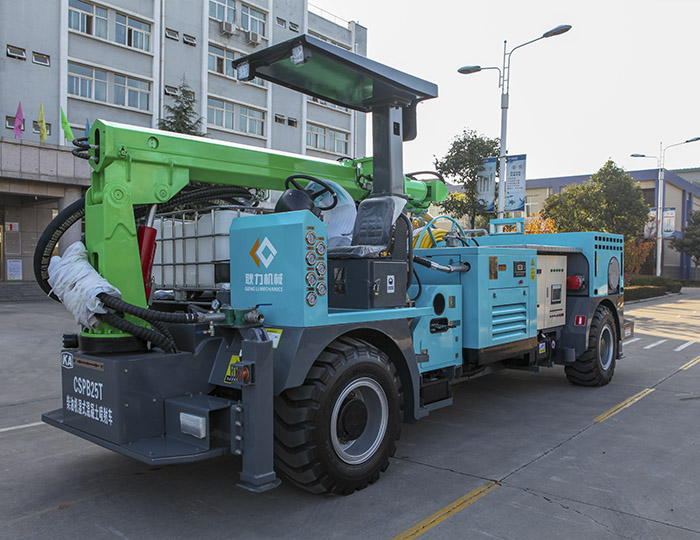

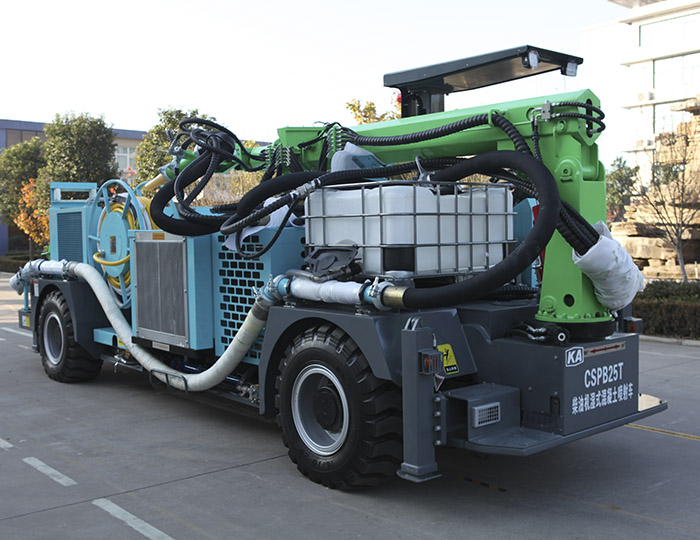

CSPB25T Diesel Truck-mounted Robot Shotcrete Machine


The CSPB25T is specially designed for small subway tunnel, small water diversion tunnel, minie tunnel and other small section tunnel excavation, it has the advantages of low overall height and high working efficiency.

Parameters
  • Theoretical spraying displacement:25m³ /h

  • Cylinder bore :φ160mm

  • Cylinder stroke :1000mm

  • Maximum praying width:16m


FEATURES

High equipment configuration and main parts all adopt imported world-famous brands

Core parts adopt world-famous brands; performance is highly guaranteed.

Lifting and safe cap to prevent rockfall

Diving cab has the function of automatic lifting, it can adjust and control automatically according to the construction conditions; Also designed with prevention ceiling to ensure the safety of workers efficiently.

25m³/h Concrete pump with high construction efficiency

The conveying cylinder has a diameter of 160mm, pumping displacement up to 25m³/h,7.5Mpa high-pressure transmission, meeting the pouring demands of massive concrete on the construction site.

Obtained safety certificate of approval for mining products

Machine has obtained national safety certificate of approval for mining products, more professional mining qualifications, more convenient and safe.

Four- wheel steering& four-wheel drive

CSPB25T has the functions of four-wheel steering and four-wheel drive, it can move flexibly in the narrow and complicated road, highly improved the cornering maneuverability of the car body.

Engine with large power reserve and strong power

Engine power of 103KW and has strong power, featuring the advantages of low fuel consumption, high power, reliable operation, and convenient maintenance and supply.

Compact structure, small size

Designed to make full use of limited space with compact structure and small size, convenient to transport.

Equipped with high-power air compressor, dealing with high attitude environment at ease

CSPB25T is equipped with a high -power air compressor, dealing with high attitude environment and poor equipment conditions at ease.
PARAMETERS
Machine  data Dimension L8160*W2200*H2500mm
Total weight 13200kg
Pumping system  Theoretic spraying displacement 25m³
Main cylinder bore 90mm
Cylinder bore 160mm
Cylinder stroke 1000mm
Feeding height 1400mm
Outlet pressure 75bar
Chassis system Maximum traveling speed 18km/h
Minimum speed 6km/h
Steering angle ±25°
Engine power 103kw
Drive way Four-wheel drive
Steering mode Front wheel,four wheel,crab walk
Minimum turning radius 6.7m
Gradeability 36%( 20°)
Ground clearance 350mm
Departure angle 18°
Approach angle 20°
Mechanical boom Mechanical boom type Rotary+double-stage telescoping
system Maximum spraying height 10.5m
  Maximum spraying depth 3m
  Maximum spraying width 16m
  Maximum rotation angle 270°
  Maximum telescoping length 3m
   Axial rotation angle of nozzle 360°
  Swing angle of nozzle 240°
  Swing angle
Air compressor Motor power 45kw
Theoretical air displacement 9m³/min
Maximum air output pressure 6bar
Accelerator system Driving way Hydraulic drive
Maximum displacement 800L
Accelerator volume 500L
Hydraulic system  Motor power 45KW
Fuel tank volume 300L
Main pump displacement 145ml
