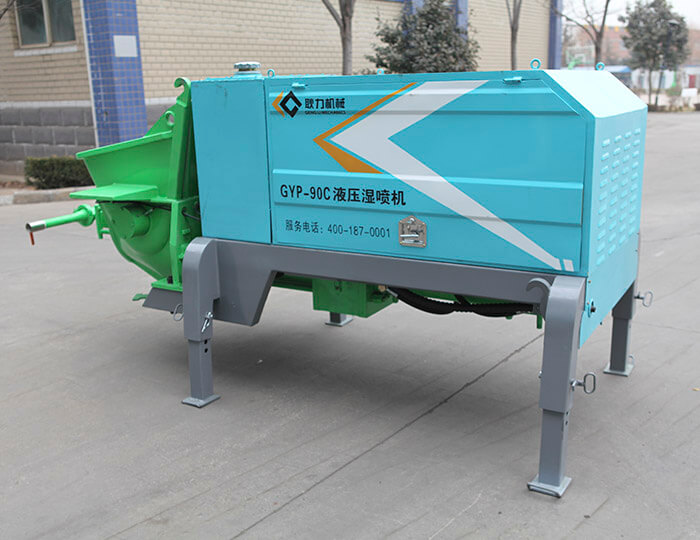

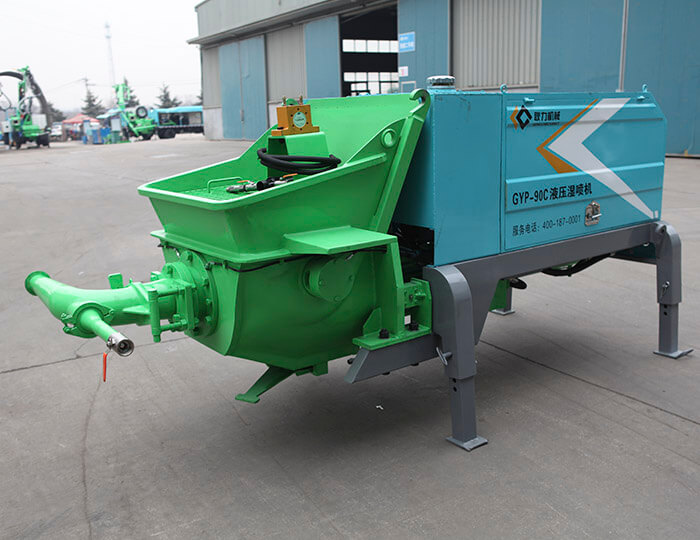

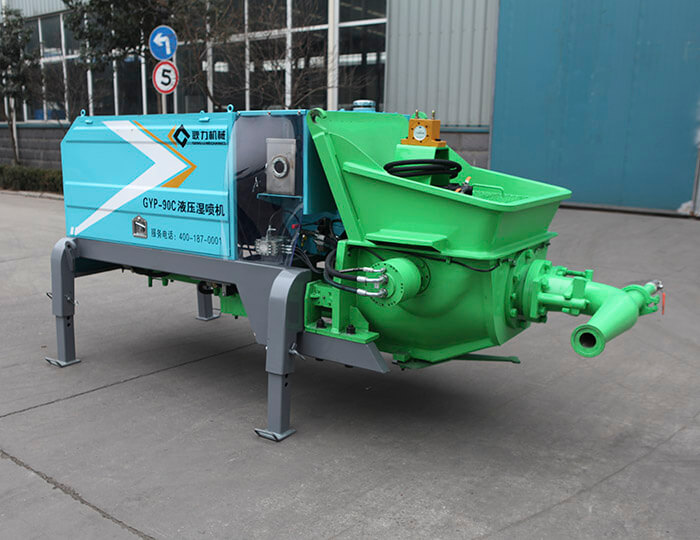

GYP-90C Hydraulic wet shotcrete machine


GYP-90C hydraulic wet shotcrete machine is using the thrust of the hydraulic pump to make the two cylinder reciprocating, the dense flow material will be sent to the mixing pipe by conveying pipe, it becomes thin flow by compressed air, then through the pipe to the nozzle. Add a certain proportion of the accelerator to the nozzle then spray directly to the surface.

Parameters
  • Production capacity: 3-7m³ /h

  • Maximum system pressure: 16MPa

  • Working wind pressure: 0.4-0.6Mpa

  • Maximum diameter of aggregate: 15mm


FEATURES

Stable performance

Stable performance, less wearing parts and low maintenance cost.

Throughput can be adjusted as needed

Throughput can be adjusted as needed (Switching time 16 times/min).

The electrical appliance adopts PLC centralized control

The electrical appliance adopts PLC centralized control, reliable work, long life, easy operation.

Continuous spraying with less pulse

Continuous spraying with less pulse

Continuous and adjustable feeding for accelerator

Continuous and adjustable feeding for accelerator.

Wire handle control makes the operation easier

Wire handle control makes the operation easier.
PARAMETERS
Basic performance Parameters
Production capacity 3-7m³/h
System pressure 16Map
Outlet pressure of concrete 6Mpa
Main motor power 22KW
Cylinder bore×stroke 140*580mm
Hopper volume 0.3m³
Cement ratio 0.45-0.6
Workin wind pressure 0.4-0.6
Feeding height 1150mm
Maximum aggregate diameter 15mm
Distribution valve of concrete S tube valve
Lubrication system Manual +auto
Slump of concrete 120-180mm
Fuel tank volume 145L
Cooling way of hydraulic oil Air cooling
Dust around the machine <6mg/m³
Resilient rate ≤10%
Machine weight 1950kg
Dimension 3250×1550×1650mm
