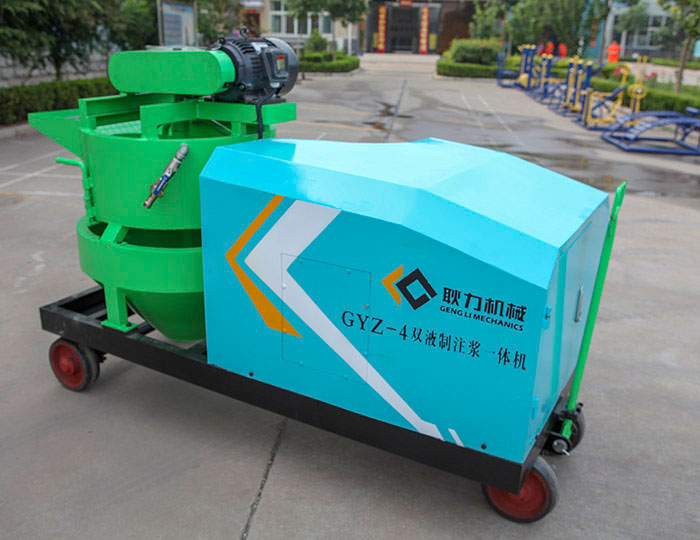

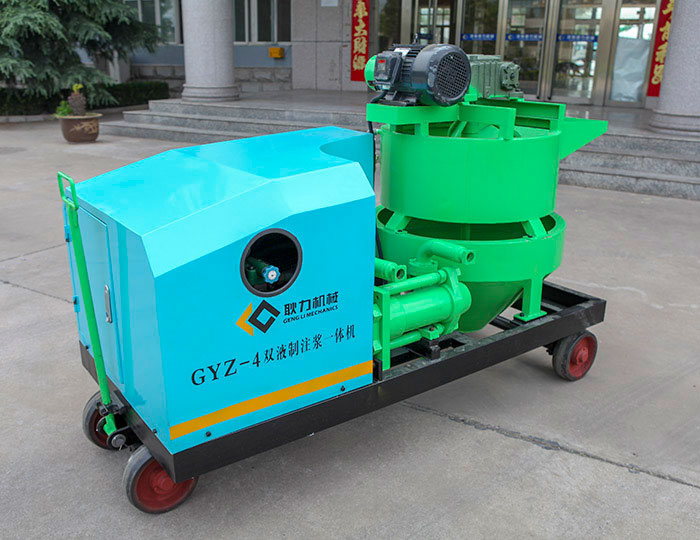

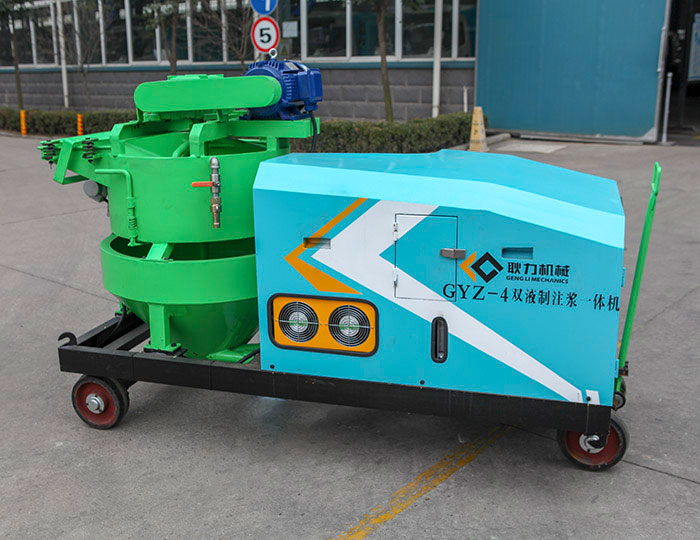

GYZ-4 Dual-fluid pulping and grouting machine


The equipment is mixing and grouting machine, the mixing part adopts vertical double-layer mixing, the upper layer is a mixing bucket and the lower layer is a discharging bucket, Grouting part adopts fully hydraulic single-cylinder double-acting piston pump; The structure not only reduces equipment investment, but also improves grouting efficiency and reduces the labor intensity of workers at the working site.

Parameters
  • Theoretic output quantity:4m³ /h

  • Feeding height:1150mm

  • Mixing speed:48r/min

  • Mixing hopper volume:120L


FEATURES

Integrating mixing, storing and grouting

It integrates mixing, storing and grouting for easier operation

The discharge hose is easy to disassemble and clean

The discharge hose is connected with a quick connector for easy disassembly and cleaning.

Grouting parts with easy disassembly and extremely low fault rate

Grouting parts with simple structure, easy disassembly and low fault rate.

Machine with flexible movement and strong applicability

Compact structure and outstanding mobility, especially suitable for narrow operation space.
PARAMETERS
ModelGYZ-4
Production capacity4m³/h
Maximum system pressure7Mpa
Working pressure0.5~7Mpa
Maximum delivery distanceHorizontal   200m/Vertical 60m
Mixing speed48r/min
Feeding speed1150mm
Inner diameter of grouting pipeΦ38mm
Mixing hopper volume120L
Hydraulic pump motor modelY160M-4
Mixer motor modelY112M-4
Total motor power11+4+0.0+0.04(KW)
voltage380V
Machine weight450kg
Dimension2220×920×1500mm
