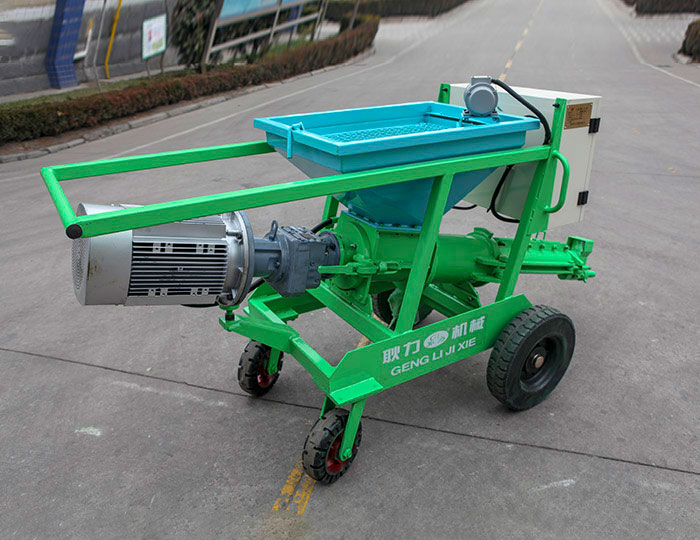

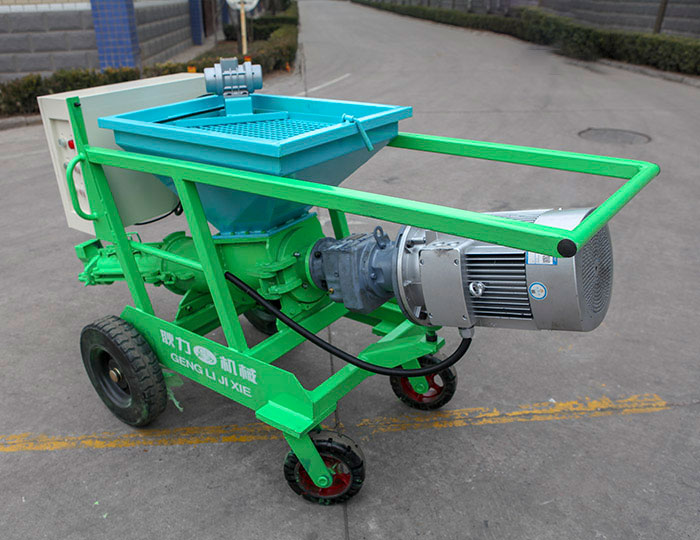

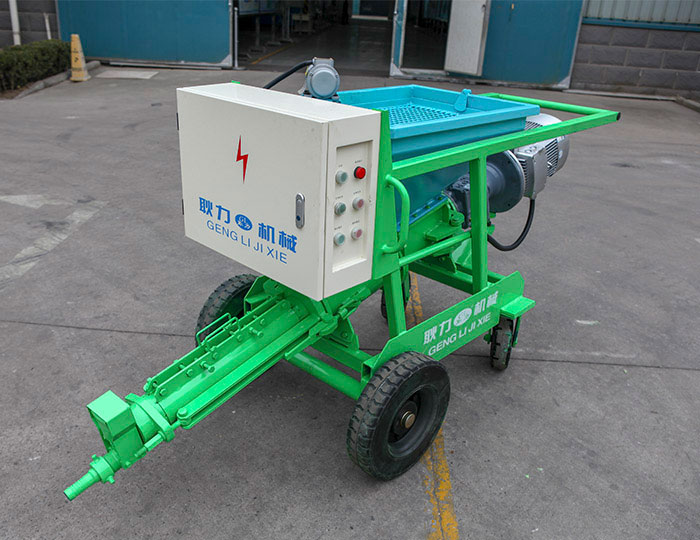

GZ-5 Screw grouting pump

GZ-5 screw grouting pump is suitable for construction such as bolting grouting, backfilling, consolidation grouting etc. for the empty area under the road, railway, subway, hydropower station etc. If equipped with the spraying device, it also can be used for construction of basement and finish coat for interior and exterior wall of buildings.

Parameters

Production capacity：5m³ /h
Working pressure：0-3.5MPa
Maximum aggregate diameter：3mm
Maximum delivery distance：Horizontal 60m/Vertical 30m

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Simple structure, easy maintenance

It is suitable for saturated grouting of various slumps to ensure construction quality; The pressure can be adjusted between 0-3.5Mpa according to the actual construction requirements.

PARAMETERS

Model	GZ-5
Production capacity	5m³/h
Working pressure	0-3.5Mpa
Maximum aggregate diameter	3mm
Maximum delivery distance	Horizontal 60m/Vertical30m
Machine weight	400kg
Dimension	2400×860×1190mm
Inner diameter of delivery pipe	Φ32
Main motor power	7.5KW
Voltage	380V
