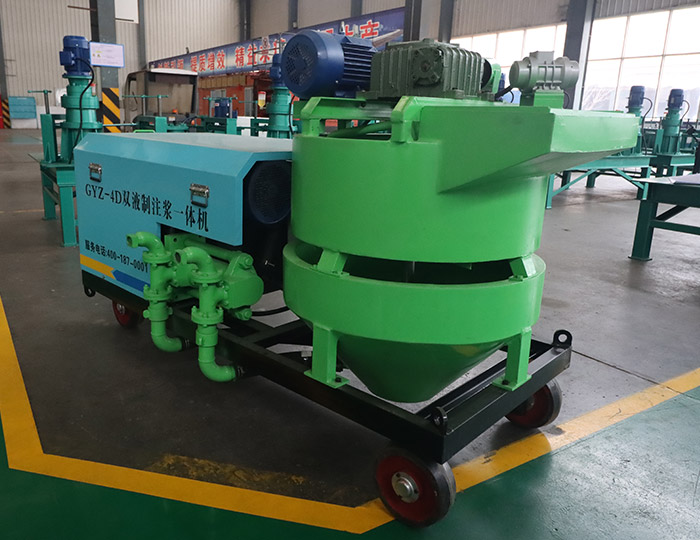

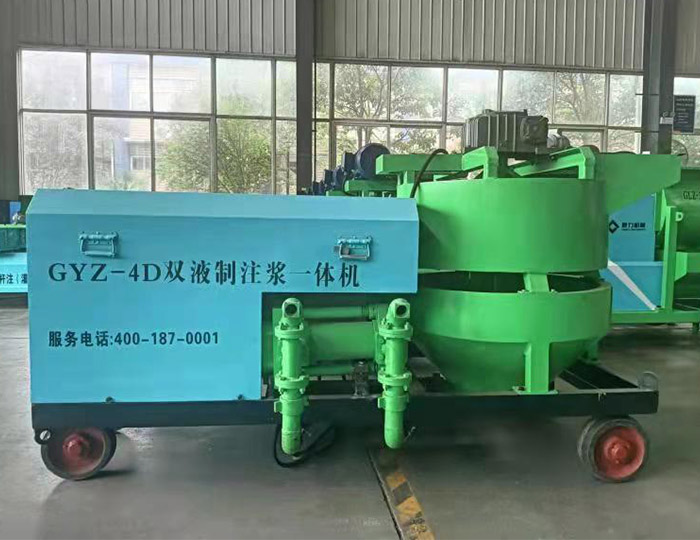

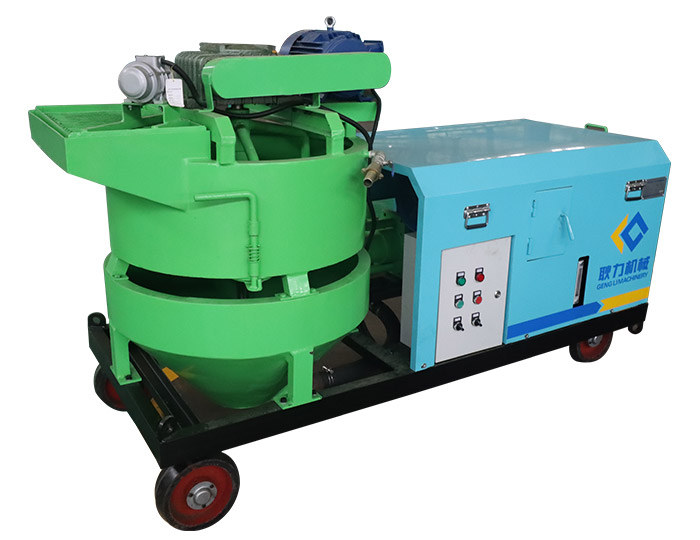

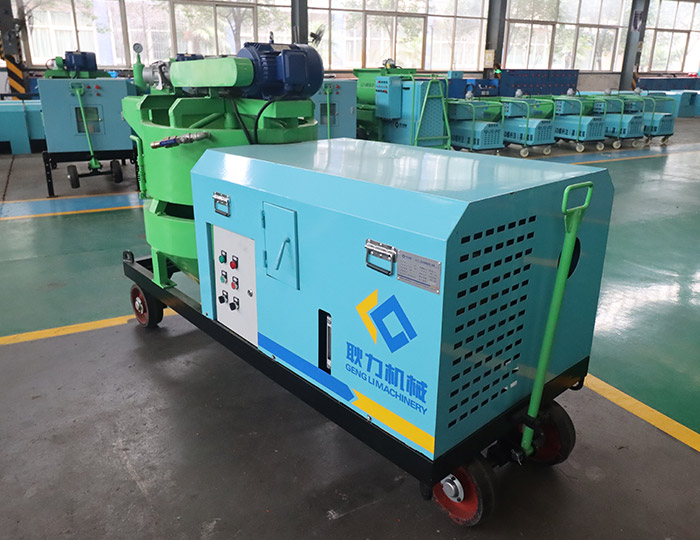

GYZ-4D Dual-fluid pulping and grouting machine

GYZ-4D Dual-fluid pulping and grouting machine

Cement paste grouting of anchoring，tunneling，underground continuous wall，junction of road and bridge in highway,earth dam of reservoir river ,earth-rock dam body,crevice and loose bed of dam foundation, karst cave ,and fault water plugging.

Parameters

Theoretic output quantity：4m³ /h
Feeding height：1150mm
Mixing speed：48r/min
Mixing hopper volume：120L

Online Inquiry

Send Email

FEATURES PARAMETERS PROJECT CASE CASE INQUIRY RELATED PRODUCTS

FEATURES

Integrating mixing ,storing and grouting

Integrating mixing ,storing and grouting for easier operation.

Grouting parts with easy disassembly and extremely low fault rate

Grouting parts with simple structure ,easy disassembly and low fault rate.

Machine with flexible movement and strong applicability

Compact structure and outstanding mobility ,especially suitable for narrow operation space.

The discharge hose is easy to disassemble and convenient to clean

The discharge hose is connected with a quick connector for easy disassembly and cleaning.

PARAMETERS

Model	GYZ-4D
Production capacity	4m³/h
Maximum system pressure	7Mpa
Working pressure	0.5~7Mpa
Maximum delivery distance	Horizontal 200m/Vertical 60m
Mixing speed	48r/min
Feeding speed	1150mm
Inner diameter of grouting pipe	φ38mm
Mixing hopper volume	120L
Hydraulic pump motor model	Y160M-4
Mixer motor model	Y112M-4
Total motor power	11+4+0.0+0.04(KW)
voltage	380V
Machine weight	450kg
Dimension	2220×920×1500mm
