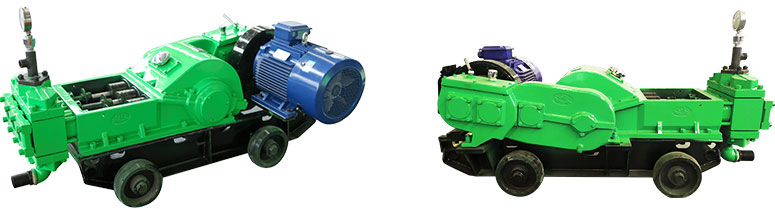

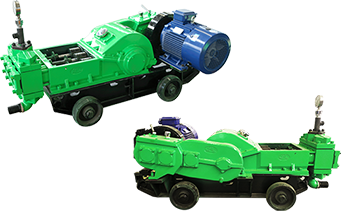

GL-3ZA Tri-plunger high-pressure grouting pump

GL-3ZA three-plunger high-pressure grouting pump is mainly used for forced infusion of mortar and cement slurry.
  • Cement paste grouting of underground continuous wall.
  • Cement paste grouting of tunneling.
  • Cement paste grouting of junction of road and bridge in highway.
  • Cement paste grouting of anchoring.
Item Unit GL-3ZA
Rating speed n r/min 91 245
Theoretical displacement Qth L/min 76 207
Pressure Cement paste Mpa 12 4
Mortar 10 3.7
Medium ratio kg Water:cement:sand=0.5:1.1:1.2
Inlet diameter D mm 64
Outlet diameter D mm 32
Power N KW 18.5
Dimension L×B×H mm 1800×945×705
Machine weight kg 930
Horizontal delivery distance L m 0-380
Vertical delivery distance H m 0-120

GZJB-II Hydraulic double liquid grouting pump

  • Double liquid multifunctional grouting pump.
  • Hydraulic drive, stable and reliable grouting.
  • The layout of the whole machine is beautiful and portable, and the transition is flexible
  • The working pressure can be adjusted independently.
  • Using a new type of radiator, the heat dissipation effect is stronger.
  • No need to remove the hood for maintenance,saving time and effort.
Item Parameters
Theoretical Output 4m³/h
Maximum System Pressure 7Mpa
Conveying Pressure 7Mpa
Total Weight 450kg
Overall Dimension 1290*1019*1050mm
Maximum Conveying Distance 200/60m(Horizontal, Vertical)
Main Motor Power 11kw
Voltage Classes 380V
Inner Diameter of Infusion Tube ￠32/￠51mm
Inner Diameter of Absorption Tube
More details Get quotes

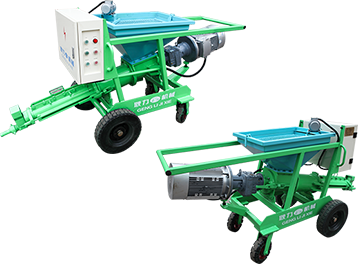

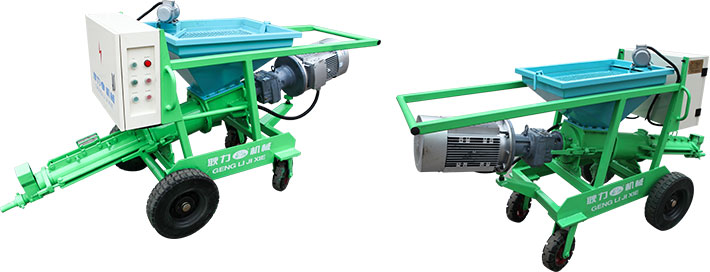

  • GZ-5 screw grouting pump
  • GZ-5 screw grouting pump is suitable for construction such as bolting grouting, backfilling, consolidation grouting etc. for the empty area under the road, railway, subway, hydropower station etc.
  • If equipped with the spraying device, it also can be used for construction of basement and finish coat for interior and exterior wall of buildings.
Model GZ-5
Production capacity 5m³/h
Working pressure 0-3.5Mpa
Maximum aggregate diameter 3mm
Maximum delivery distance Horizontal 60m/Vertical 30m
Machine weight 400kg
Dimension 2400×860×1190mm
Inner diameter of delivery pipe Φ32
Main motor power 7.5KW
Voltage 380V
More details Get quotes

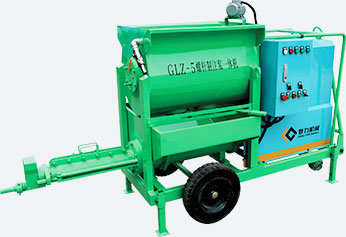

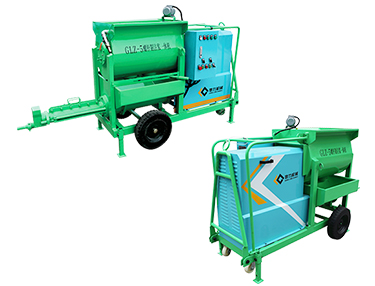

GLZ-5 Screw pulping and grouting machine

  • Compact structure and reliable performance.
  • Light weight and wheeled chassis,easy to move.
  • The mixing and grouting can be realized at the same time.
  • Applicable to a wide range of water-cement ratio.
  • Grouting sand with a wide range of particle size.
  • Passive pressure-rise to ensure grouting pressure.
  • Grouting is safe and reliable.
Model GLZ-5
Production capacity 5m³/h
Total motor power 10.5KW
Sand particle size ≤3mm
Water-cement ratio ≥0.3mm
Delivery distance Horizontal 60m
Vertical 30m
Mixing hopper volume 210L
Feeding height 1247mm
Machine weight 660kg
Dimension 2160x1260x1550mm
More details Get quotes

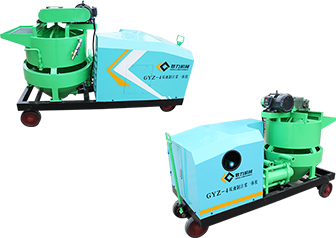

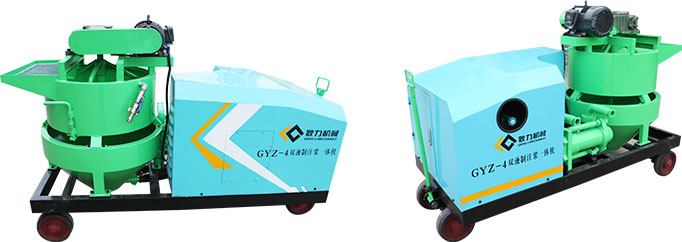

GYZ-4 Dual-fluid pulping and grouting machine

  • Integrating mixing, storing and grouting.
  • The discharge hose is easy to disassemble and clean.
  • Grouting parts with easy disassembly and extremely low fault rate.
  • Machine with flexible movement and strong applicability.
Model GYZ-4 Mixing hopper volume 120L
Production capacity 4m³/h Hydraulic pump motor model Y160M-4
Maximum system pressure 7Mpa Mixer motor model Y112M-4
Working pressure 0.5-7Mpa Total motor power 11+4+0.0+0.04(KW)
Maximum delivery distance Horizontal 200m/Vertical 60m voltage 380V
Mixing speed 48r/min Machine weight 450kg
Feeding speed 1150mm Dimension 2220×920×1500mm
Inner diameter of grouting pipe Φ38mm
More details Get quotes

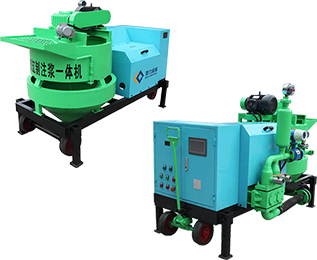

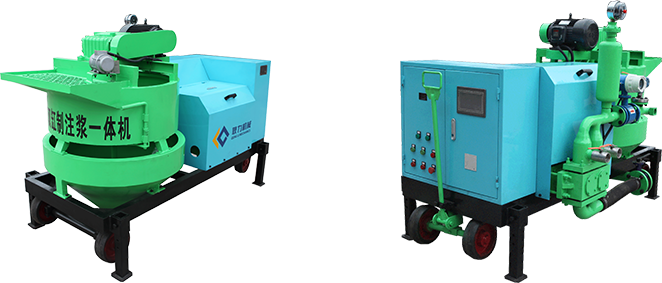

GSZ-8 Double-cylinder pulping and grouting machine

  • High pumping pressure.
  • Grouting pipe is easy to disassemble, and convenient to clean and maintain.
  • Integrating mixing, storing and grouting.
  • Simplify construction technology, improve grouting quality.
Machine parameters Model GSZ-8
Machine weight 1040kg
Dimension 2160×1260×1550mm
Production capacity 8m³/h
Mixing system power 4KW
Grouting system power 11KW
Working pressure 0-5Mpa
Maximum delivery distance Horizontal 200m/Vertical 60m
Feeding height 1150mm
Mixing system Mixing speed 48r/min
Mixing hopper volume 180L
Pumping system Plunger cylinder numbers 2
Motor speed 1480r/min
Diameter of slurry pipe 42mm
Electronic control system Pressure factory setting 6Mpa
More details Get quotes
