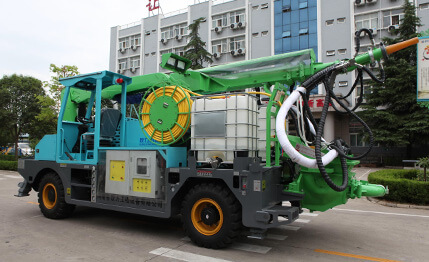

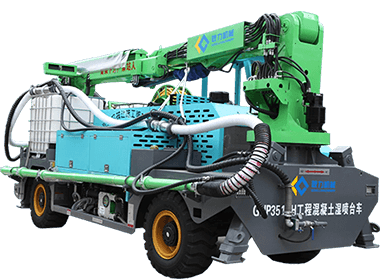

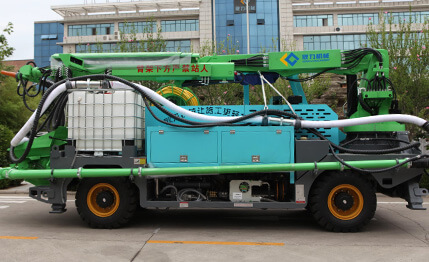

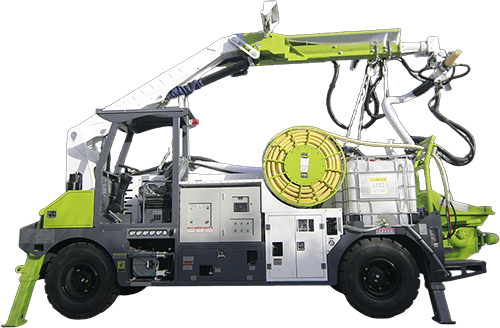

Truck-mounted Robot Shotcrete Machine
Customized remote control is adopted, which is durable, strong anti-interference ability, and 100 meters long-distance wireless remote control.Accurate control by frequency conversion motor, Real-time monitoring of traffic.Tensile and wear-resistant cables are standard configurations, which have a
strong ability to resist voltage fluctuations and prolong service life.It adopts large bore and long-stroke pumping system, which has strong suction
capacity. In theory, it can pump 35 cubic meters of concrete per hour, while
reducing wear and prolonging service life.
Product Parameters
| Item | Specification | Unit | Parameter |
| Machine Data | Size(L×W×H) | mm | 7770×2645×3230 |
| Weight | kg | 15500 | |
| Pumping System | Shotcrete Capacity | m³/h | 35 |
| Oil Cylinder Bore | mm | Φ100 | |
| Piston Cylinder Bore | mm | Φ180 | |
| Piston Cylinder Stroke | mm | 1000 | |
| Conveying Pipe Diameter | mm | Φ125～Φ90 | |
| Max. Aggregate Size | mm | Φ15 | |
| Concrete Outlet Pressure | bar | 83 | |
| Hopper Volume | m³ | 0.3 | |
| Traveling System | Traveling Method | / | Wheel |
| Driving Axle | / | Wet Brake Axle | |
| Steering | / | Four Wheel Drive | |
| Min. Turning Radius | m | 10 | |
| Engine Power | kw | 97 | |
| Wheelbase | mm | 3940×1876 | |
| Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ | km/h | 5/10/17.5/20 | |
| Max. Climbing |
|
36%（20°） | |
| Min. Ground Clearance | mm | 300 | |
| Braking Distance | m | 5(20km/h) | |
| Boom | Max. Spraying Height | m | Depth7.4～High15.8 |
| Max. Spraying Width | m | ±13.5 | |
| Swing Angle of Boom | （°） | 270 | |
| Rotary Angle around nozzle | （°） | ±180 | |
| Left-right turn angle of nozzle | （°） | ±120 | |
| Swing Angle of Nozzle | （°） | 8（continuous） | |
| Swing Angle of Nozzle | （°） | 8（continuous） | |
| Min. Tunnel Size | m | 4 | |
| Dosing System | Doding Pump | / | YD25R |
| Driving Method | / | Frequency Motor Drive | |
| Dosing Flow | L/h | 1000 | |
| Max. outlet pressure | bar | 12 | |
| Accelerator Tank | L | 1000 | |
| Electric System | Cable Specification | / | 3×35² |
| Cable Length | m | 80 | |
| Hydraulic System | Motor Power | kw | 55 |
| Oil Tank Volume | L | 370 | |
| Hydraulic oil pollution degree | / | NAS1638-9 | |
| Oil Pump Flow | ml/r | 145 | |
| Washing System | Water Pump Model | / | 3WZ-1814HM |
| Water Tank Volume | L | 500 | |
| Drive Method | / | Hydraulic |

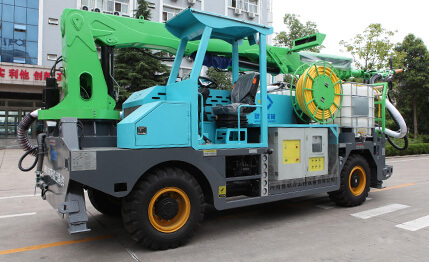

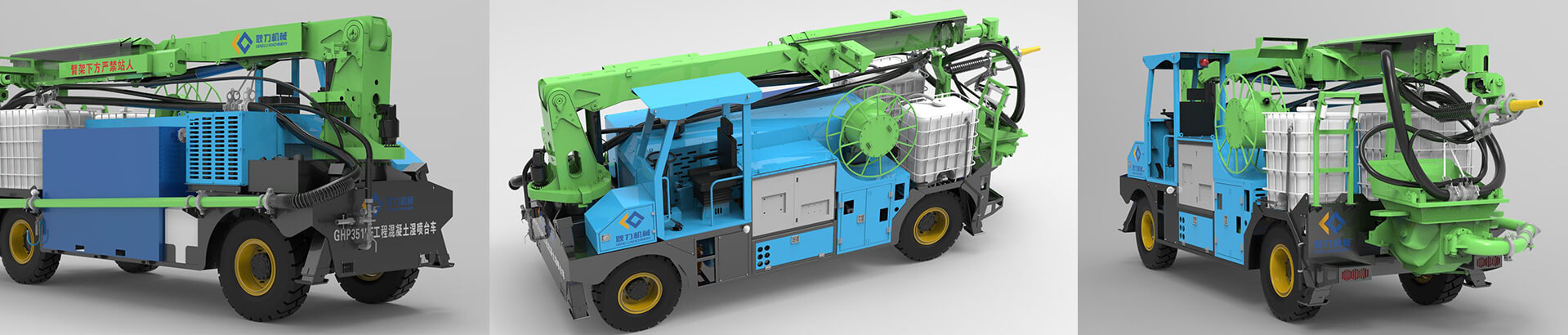

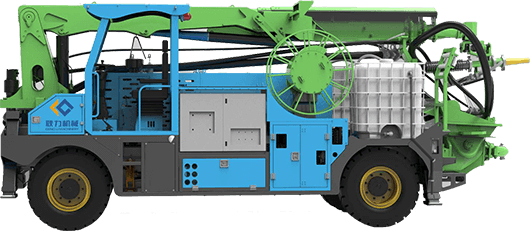

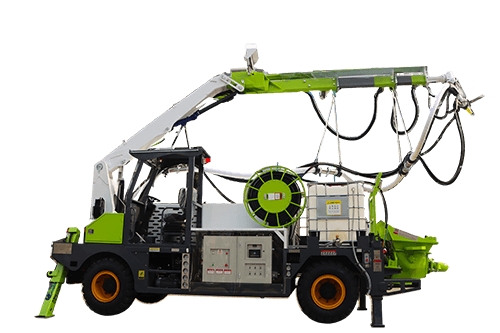

Engineering Truck-mounted Robot Shotcrete Machine
After tens of thousands of fatigue strength tests, the service life is longer, the performance is
more stable, more reliable, the operation range is wide，the hydraulic control is adopted, the
operation is sensitive, and the maintenance is more convenient.The whole vehicle is equipped with a high-power air compressor, which solves the disadvantages
of limited equipment conditions in the past, and makes it easy to use the equipment in high-altitude
areas and areas with poor equipment on the working site..
Product Parameters
| Item | Specification | Unit | Parameter |
| Machine Data | Size(L×W×H) | mm | 7910×2645×3270 |
| Weight | kg | 17000 | |
| Pumping System | Shotcrete Capacity | m³/h | 35 |
| Oil Cylinder Bore | mm | Φ100 | |
| Piston Cylinder Bore | mm | Φ180 | |
| Piston Cylinder Stroke | mm | 1000 | |
| Conveying Pipe Diameter | mm | Φ125～Φ90 | |
| Max. Aggregate Size | mm | Φ15 | |
| Concrete Outlet Pressure | bar | 83 | |
| Hopper Volume | m³ | 0.3 | |
| Traveling System | Traveling Method | / | Wheel |
| Driving Axle | / | Front wheel steering | |
| Steering | / | Four Wheel Drive | |
| Min. Turning Radius | m | 11.4 | |
| Engine Power | kw | 97 | |
| Wheelbase | mm | 4400×1887 | |
| Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ | km/h | 5/10/17.5/20 | |
| Max. Climbing |
|
36%（20°） | |
| Min. Ground Clearance | mm | 300 | |
| Braking Distance | m | 5(20km/h) | |
| Boom | Max. Spraying Height | m | Depth7.4～High15.8 |
| Max. Spraying Width | m | ±13.5 | |
| Swing Angle of Boom | （°） | 270 | |
| Rotary Angle around nozzle | （°） | ±180 | |
| Left-right turn angle of nozzle | （°） | ±120 | |
| Swing Angle of Nozzle | （°） | 8（continuous） | |
| Swing Angle of Nozzle | （°） | 8（continuous） | |
| Min. Tunnel Size | m | 4 | |
| Dosing System | Doding Pump | / | YD25R |
| Driving Method | / | Frequency Motor Drive | |
| Dosing Flow | L/h | 1000 | |
| Max. outlet pressure | bar | 12 | |
| Accelerator Tank | L | 1500 | |
| Electric System | Cable Specification | / | 3×95² |
| Cable Length | m | 80 | |
| Hydraulic System | Motor Power | kw | 55 |
| Oil Tank Volume | L | 390 | |
| Hydraulic oil pollution degree | / | NAS1638-9 | |
| Oil Pump Flow | ml/r | 145 | |
| Washing System | Water Pump Model | / | 3WZ-1814HM |
| Water Tank Volume | L | 200 | |
| Drive Method | / | Hydraulic | |
| Compressor | Compressor motor power | Kw | 90 |
| Air Flow | m³/h | 15.1 | |
| Air pressure | bar | 0.7 |

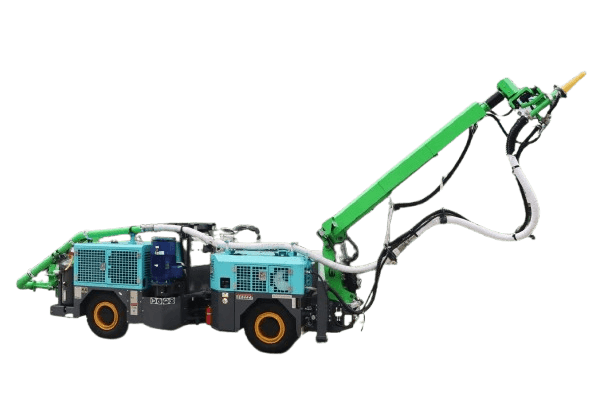

Truck-mounted Robot Shotcrete Machine
Large bore & long stroke concrete cylinder; Strong suction ability, maximum pumping flow reaches up to 20m³/hLarge conveying pipe, reduce the wear of concrete on the pipeline; Prolong the service life, and with strong anti-blocking ability.Reinforced wet brake drive axle, Four-wheel drive, Articulated steering, Strong rod adaptability.Signal pulse feedback, originally imported, proportional flow valve to accurately control the flow in real time.
Product Parameters
| Item | Basic Performance | Data |
| Machine data | Dimension | 7000*2140*2450mm |
| Total weight | 11000kg | |
| Pumping system | Theoretical spraying displacement | 20m³/h |
| Concrete cylinder bore | Φ140mm | |
| Concrete cylinder stroke | 1000mm | |
| Conveying pipe | Φ125-Φ80mm | |
| Maximum aggregate size | 15mm | |
| Hopper volume | 0.3m³ | |
| Outlet pressure of concrete | 60bar | |
| Water-cement ratio | 0.45~0.6 | |
| Filling height | 1350mm | |
| Chassis | Traveling way | Wheel type |
| Driving axle | Hydraulic wet brake axle | |
| Driving/Steering | Four-wheel driving/Articulated steering | |
| Articulated angle | ±47.5° | |
| Min.turning radius | Inner 3215mm/ Outer 5845mm | |
| Engine power | 81kw/2200RPM | |
| Wheelbase×Wheel tread | 3920mm×1540mm | |
| Max.traveling speed | 18km | |
| Max.climbing degree | 16° | |
| Min.ground clearance | 280mm | |
| Braking distance | ≤3.5m | |
| Robot arm | Max.spraying height-vertical | 8.8m |
| Max.spraying distance-horizontal | 7.4m | |
| Max.spraying width | 14.8m | |
| Swing angle of arm | 270° | |
| Rotation angle-nozzle | ±180° | |
| Left-right rotation angle-nozzle | ±120° | |
| Nutation angle | 8°（continuous） | |
| Pitching angle | -30°/+60° | |
| Additive pump | Pump model | JXHIN-20 |
| Pump type | Peristaltic pump | |
| Driving way | Hydraulic | |
| Flow rate | 0～400L/h | |
| Max.outlet pressure | 12bar | |
| Hydraulic system | Main motor power | 37kw |
| Rated speed | 1475r/min | |
| Rated voltage | 380V/optional | |
| Oil tank volume | 270L | |
| Degree of hydraulic oil pollution | NAS1638-9 | |
| Oil pump displacement | 95/33/23/23 | |
| Air compressor | Motor power | 45kw |
| Air volume | 9.2m³/min | |
| Air pressure | 6bar |

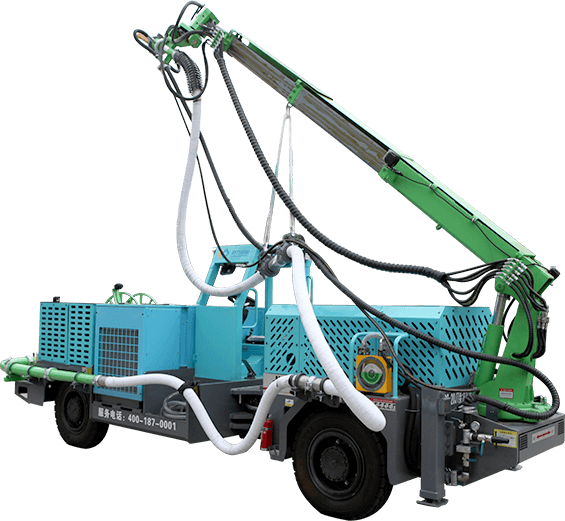

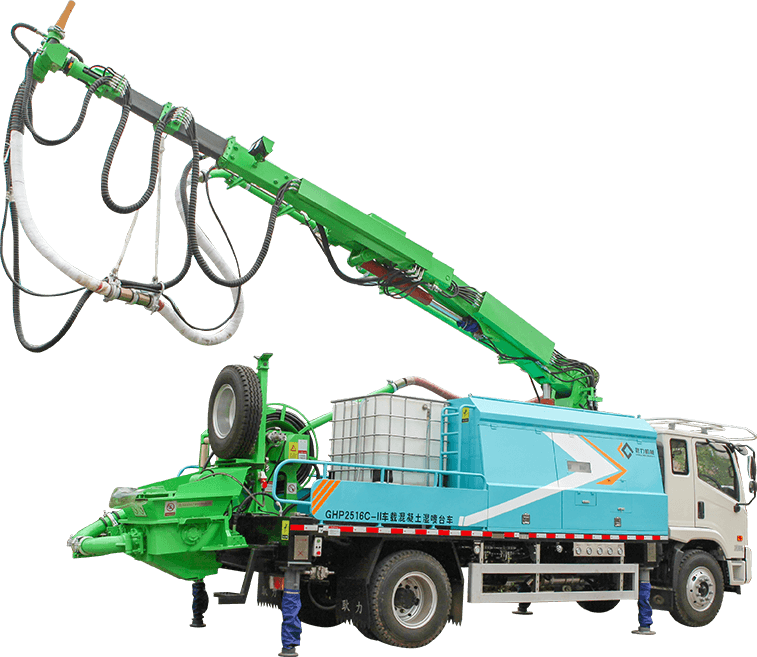

With innovative technology, excellent structure and strong mobility to consider multiple facets.Accelerator matches system automatically, resilient ratio≤15%.Link design to protect the tube, lighter weight and larger bending radius.Designed with external concrete delivery pipe for easier cleaning and examine.Remote monitoring real-time operation status, conveniently and quicklyProduct Parameters
| Machine data | Dimension | L9220 W2500 H3450mm |
| Total weight | 15200kg | |
| Pumping system | Theoretical spraying displacement | 25m³/h |
| Cylinder bore | Φ160mm | |
| Pumping stroke | 1000mm | |
| Delivery pipe diameter | Φ125-φ90mm | |
| Maximum aggregate diameter | Φ16 | |
| Hopper volume | 0.3m³ | |
| Outlet pressure of concrete | 75bar | |
| Water-cement ratio | 0.45~0.6 | |
| Chassis system | Chassis model | Foton |
| Engine power | 170hp | |
| Gear box | Fast | |
| Wheelbase | 4800mm | |
| Maximum traveling speed | 90km/h | |
| Maximum climbing degree | 30% | |
| Minimum ground clearance | 255mm | |
| Barking distance | 12.5m（50km/h） | |
| Mechanical arm | Maximum spraying height | Depth 7.3m~Height 16.4m |
| Maximum spraying width | ±13.5m | |
| Swing angle of arm | 270° | |
| Rotation angle around the nozzle | ±180° | |
| Left-right rotation angle of nozzle | ±120° | |
| Swing angle of nozzle | 8° | |
| Accelerator system | Accelerator pump model | SN-12 |
| Driving way | Hydraulic | |
| Accelerator displacement | 0~1000L | |
| Maximum outlet pressure | 20bar | |
| Accelerator volume | 1000L | |
| Hydraulic system | Main motor power | 55KW |
| Fuel tank capacity | 350L | |
| Accuracy grade of hydraulic oil | NAS1638-9 | |
| Main pump displacement | 145ml/r | |
| Washing system | Pump model | 3WZ-1814HM |
| Water tank volume | 350L | |
| Driving way | Hydraulic drive |
